Name: ADN-16-25-I-P-A, Festo
Brand: Festo
SKU: ET14037137
Price: 44.65 GBP
Availability: InStock

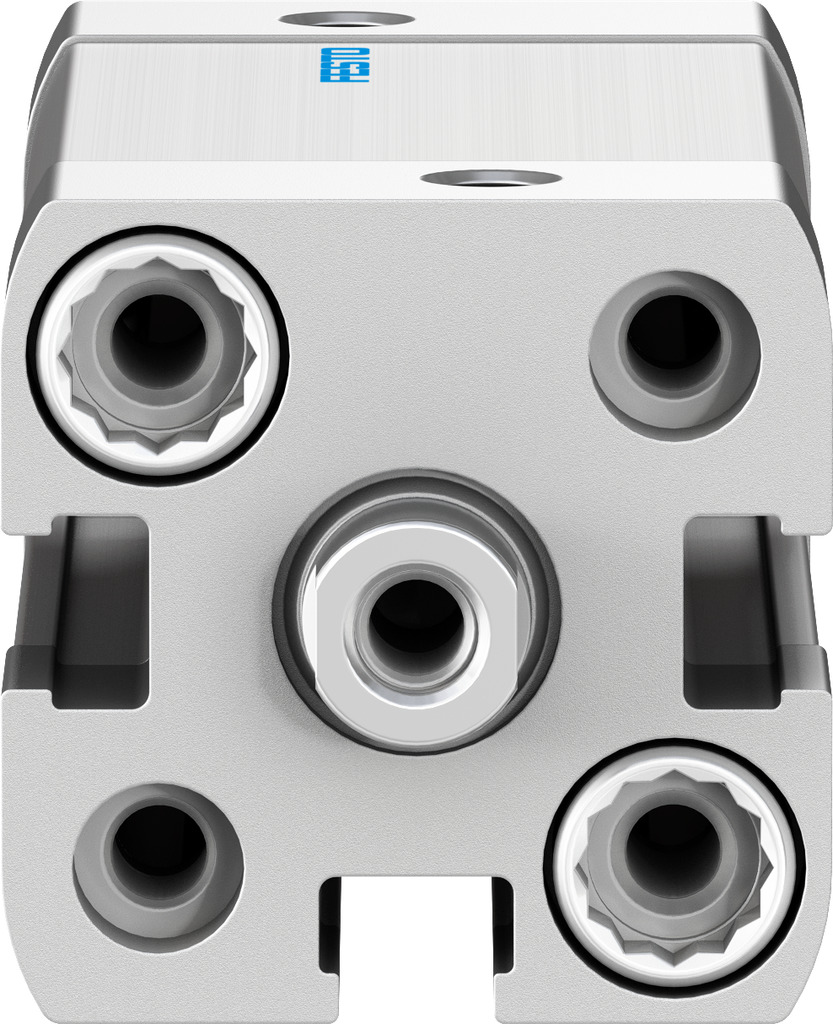

ADN-16-25-I-P-A Festo Double Action Pneumatic Cylinder 16mm Bore, 25mm stroke

(0)

Product Information

Port Connection:

Dimensions:

29 x 29 x 64.7mm

Maximum Operating Pressure:

10 bar

Piston Rod Thread Gender:

Female

Model Number p:

536230

Stroke:

25mm

Pneumatic Connection:

Height:

29mm

Width:

29mm

Length:

64.7mm

Manufacturer Series:

ADN

Minimum Operating Temperature:

-20°C

Checking for live stock

The Festo ADN-16-25-I-P-A is a compact, double-acting pneumatic cylinder designed for short-stroke linear motion in confined spaces. With a 16 mm bore and a 25 mm stroke, it is commonly used in automated systems that require precise, repeatable motion without bulky hardware. This cylinder is typically installed in machines where mounting space is tight, but performance and reliability still matter.

Key Performance Strengths of the Festo 536230 Double-Action Pneumatic Cylinder

The compact body design allows this cylinder to fit into narrow machine frames, small assemblies, and modular automation setups. Despite its small size, it delivers a stable force and smooth motion in both extension and retraction.

16 mm bore for controlled force output.
25 mm stroke for short, accurate travel.
Compact housing for space-restricted layouts.
Consistent forward and return motion.
Better timing control in automated cycles.
Reliable operation in continuous duty systems.

Double-Acting Operation for Better Control

Because this is a double-acting cylinder, air pressure controls movement in both directions. This provides better speed control, positioning, and repeatability than single-acting designs.

Applicable Areas of the Product

The ADN-16-25-I-P-A is typically found in:

Industrial automation and assembly machines
Pick-and-place units
Clamping and positioning systems
Packaging and light material handling equipment

ADN-16-25-I-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)
