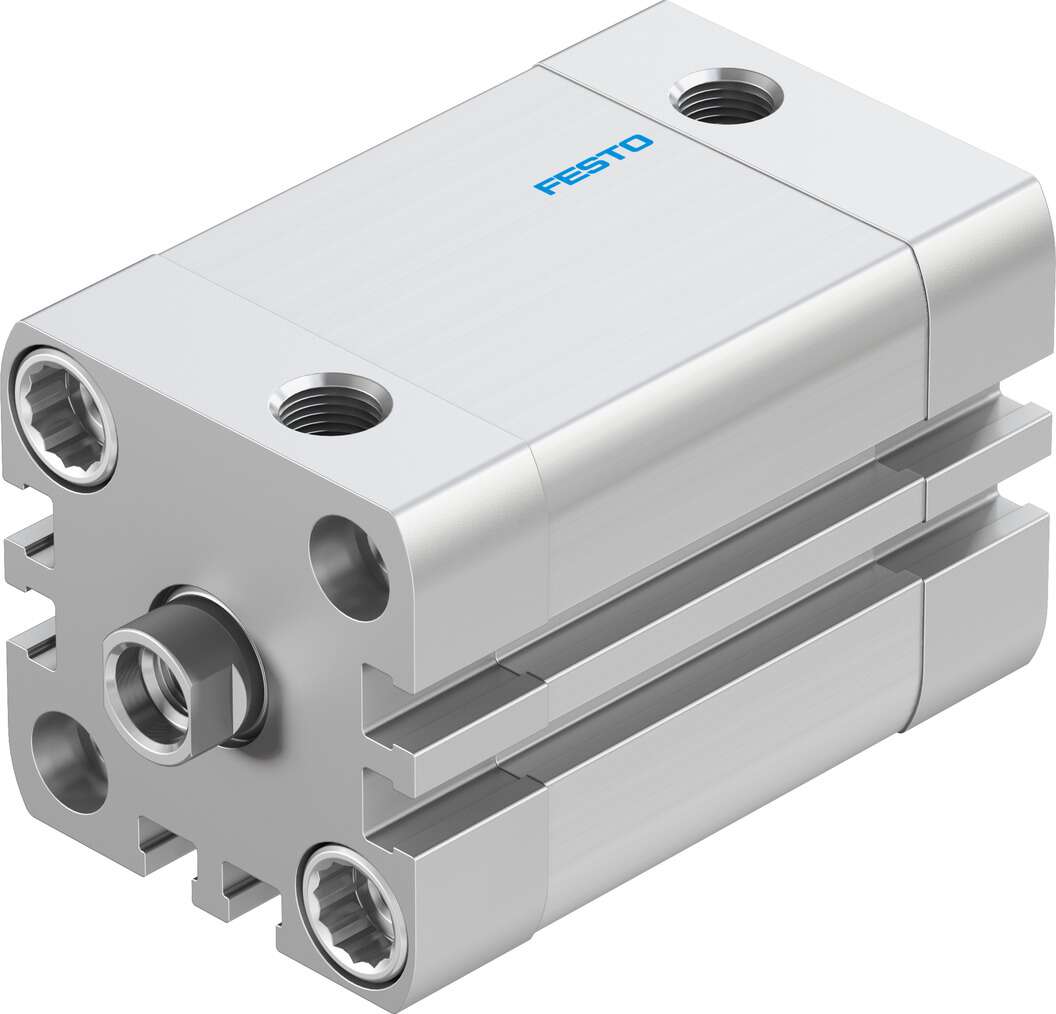

Festo 536283, Double Action Pneumatic Compact Cylinder 32mm Bore, 30mm Stroke

Enrgtech Part No: ET13983272
|
Manufacturer Part No:
ADN-32-30-I-P-A
|
Manufacturer: Festo

ADN-32-30-I-P-A Festo 536283, Double Action Pneumatic Compact Cylinder 32mm Bore, 30mm Stroke

Product Information

Port Connection:

G 1/8

ISO Standard:

ISO 21287

Cushioning Type:

Cushioning Rings

Dimensions:

47 x 47 x 80mm

Weight:

355g

VDMA Standard:

VDMA24364

Piston Rod Thread Gender:

Female

Model Number p:

536283

Stroke:

30mm

Pneumatic Connection:

G 1/8

Height:

47mm

Width:

47mm

Checking for live stock

The Festo ADN-32-30-I-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited but reliable linear movement is required. With a 32 mm bore and a 30 mm stroke, it delivers controlled push-and-pull motion for automation tasks that require accuracy without bulky hardware. This cylinder is typically used in compact machines, assembly units, and production equipment where installation depth matters and consistent operation is expected.

Unmatched Advantages of Buying the Festo 536283 Double-Action Pneumatic Cylinder

The ADN series is built around a short overall length, allowing it to fit into confined layouts without affecting performance. The piston movement is smooth and predictable, making it suitable for repetitive cycles in automated systems.

Double-acting operation for controlled forward and return motion.
Compact body profile for space-restricted setups.
Robust housing for continuous industrial use.

Compact Pneumatic Cylinder for Tight Installations

This cylinder is designed to operate with compressed air systems commonly used in industrial automation. It provides stable force output across repeated cycles, helping maintain consistent process timing and positioning. It is typically used where precise motion is required, but extreme force or long stroke lengths are unnecessary. The short stroke improves response time and reduces air consumption in fast-cycling applications.

Broad Range Application

The Festo ADN-32-30-I-P-A is often found in:

Pick-and-place mechanisms
Clamping and holding systems
Assembly and packaging machines
Small presses and positioning units
