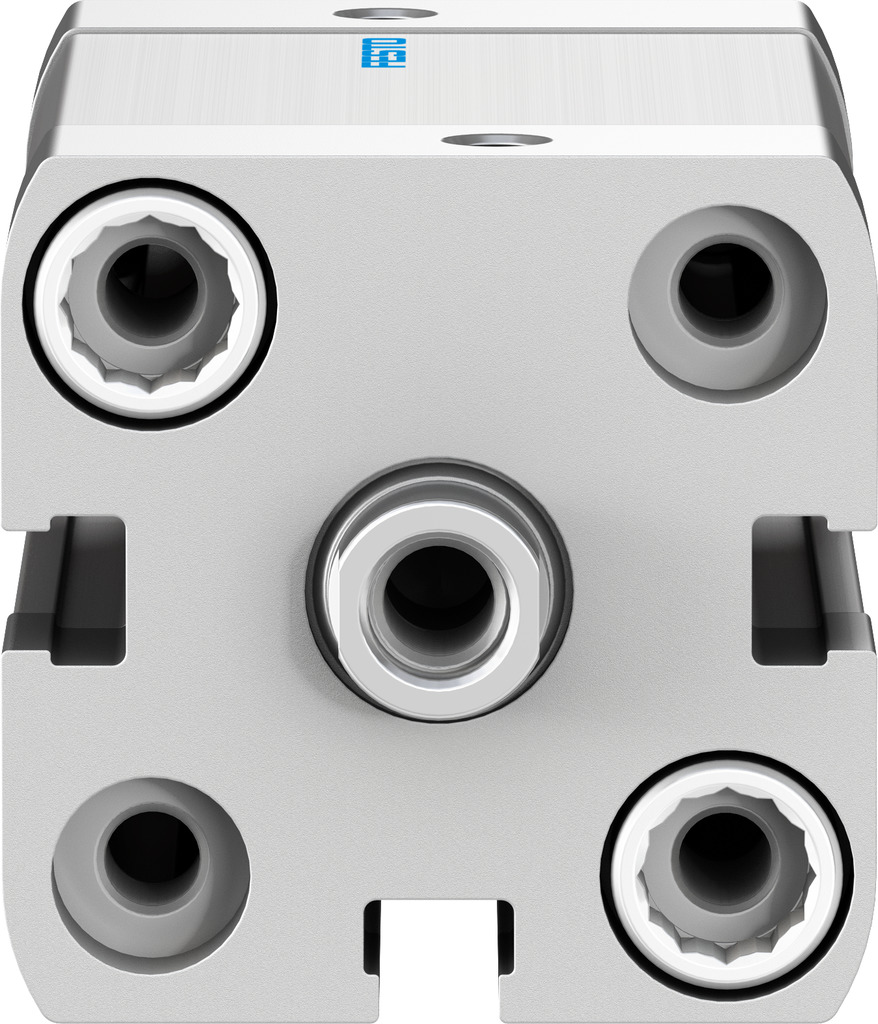

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 25mm stroke

Enrgtech Part No: ET13983270
|
Manufacturer Part No:
ADN-25-25-I-P-A
|
Manufacturer: Festo

ADN-25-25-I-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 25mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Cushioning Rings

Dimensions:

39.5 x 39.5 x 69.5mm

Weight:

213.5g

VDMA Standard:

VDMA24364

Piston Rod Thread Gender:

Female

Model Number p:

536263

Stroke:

25mm

Pneumatic Connection:

Height:

39.5mm

Width:

39.5mm

Checking for live stock

The Festo ADN-25-25-I-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but controlled linear motion is still required. With a 25 mm bore and a 25 mm stroke, it delivers reliable push-and-pull movement in compact automation systems, fixtures, and production machinery. This cylinder is commonly used in industrial environments where short strokes, precise positioning, and consistent operation matter more than long travel distances.

Core Capabilities of the Festo 536263 Double-Action Pneumatic Cylinder

The compact body allows the cylinder to fit into machines where standard ISO cylinders would be too large. Despite its small size, it provides stable motion and predictable force output when operated with compressed air.

25 mm bore for balanced force and control.
25 mm stroke for short, repeatable movements.
Double-acting operation for controlled extension and retraction.

Reliable Operation in Automation Systems

This model is designed for continuous use in automated equipment. It works well in pick-and-place units, clamping mechanisms, stops, guides, and light pressing applications. The internal construction supports smooth operation and a long service life when used within the rated pressure limits.

Product Use Cases

Packaging and assembly machines
Conveyor systems and material handling
Industrial jigs and fixtures
Small actuators in automated production lines

ADN-25-25-I-P-A Specification Sheet(Technical Reference)

Brochure - Simply Part of The Solution(Technical Reference)

Festo ADN/AEN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
