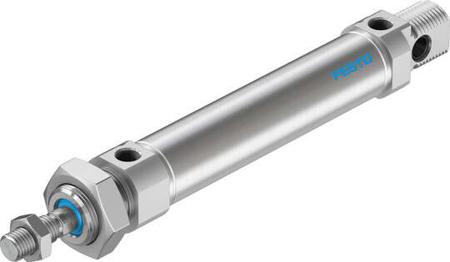

Festo DSNU-25-80-PPV-A, Double Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET13928988
|
Manufacturer Part No:
DSNU-25-80-PPV-A
|
Manufacturer: Festo

DSNU-25-80-PPV-A Festo , Double Action Pneumatic Roundline Cylinder

Product Information

Cushioning Type:

Air Cushion

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

19247

Length:

221.5mm

Standards/Approvals:

Germanischer Lloyd, ATEX II 2GD, CE marking to EU Explosion Protection Directive (ATEX), ISO 228-1, ISO 6432, ISO 1179-1

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Front, Rear, Foot, Flange, Direct, Swivel

Checking for live stock

The Festo DSNU-25-80-PPV-A is a double-acting pneumatic piston rod cylinder used for controlled linear movement in industrial automation systems. It is designed to extend and retract using compressed air, making it suitable for repeatable motion in machines, assembly lines, and automated workstations. With a 25 mm bore and an 80 mm stroke, this cylinder is commonly selected where compact size, stable guidance, and predictable force output are required.

Robust Cylinder for Controlled Linear Motion

This cylinder operates by applying air pressure alternately to both sides of the piston. That allows controlled movement in both directions rather than relying on a spring return. This makes it more suitable for precise positioning, frequent cycling, and load handling. It is typically mounted to machine frames, fixtures, or automation modules where straight-line motion is needed without complexity.

How It Benefits Users

The DSNU series features a round-body design with a stainless-steel tube and threaded end caps. This helps the cylinder handle vibration, continuous use, and industrial environments without frequent maintenance.

Double-acting operation for push and pull motion.
Pneumatic cushioning (PPV) to reduce impact at end positions.
Compact body for space-limited installations.
Piston rod design suited for guided linear movement.

Usage Scenarios of the Festo 19247 Pneumatic Piston Rod Cylinder

This cylinder is typically found in:

Packaging and material handling equipment
Pick-and-place mechanisms
Clamping and positioning systems
Light pressing and transfer applications

Instruction Sheet - DSNU Series(Technical Reference)

DSNU-25-80-PPV-A Specification Sheet(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
