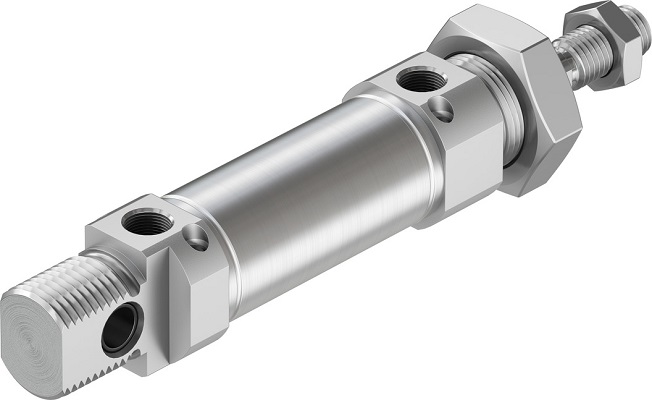

Festo Double Action Pneumatic Roundline Cylinder, DSNU-25-20-PPV-A

Enrgtech Part No: ET13928983
|
Manufacturer Part No:
DSNU-25-20-PPV-A
|
Manufacturer: Festo

DSNU-25-20-PPV-A Festo Double Action Pneumatic Roundline Cylinder,

Product Information

Maximum Piston Speed:

100mm/s

Cushioning Type:

Air Cushion

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

1908314

Length:

161.5mm

Standards/Approvals:

ISO 6432, Germanischer Lloyd, ISO 228-1, ATEX II 2GD, CE marking to EU Explosion Protection Directive (ATEX), CRC 2, ISO 1179-1, CRC 3 to Festo standard FN 940070

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Direct

Checking for live stock

The Festo DSNU-25-20-PPV-A is a compact pneumatic cylinder designed for short-stroke linear movement in automation and industrial systems. It features a 25 mm bore and a 20 mm stroke, making it suitable for applications where space is limited but controlled motion is required. As part of the DSNU series, this cylinder complies with ISO standards, enabling easy replacement and integration into existing setups. It is a double-acting cylinder, meaning compressed air is used for both extension and retraction. This provides better control, consistent force, and repeatable movement in automated processes.

Unique Features and Benefits of the Festo 1908314 Pneumatic Cylinder

This cylinder features a durable metal body designed for continuous operation in industrial environments. The compact round design helps it fit into tight assemblies without sacrificing stability. It is commonly mounted on machinery that requires precise, short movements.

25 mm bore for balanced force output.
20 mm stroke for short linear motion.
Compact round body for space-saving installations.
Adjustable end-position cushioning.
Reduced shock at stroke limits.
Improved system durability.

Controlled Movement with Cushioning

The PPV-A version includes adjustable pneumatic cushioning at both ends of the stroke. This helps slow the piston at the end positions, reducing impact, vibration, and mechanical stress on connected components.

Usage Recommendations of the Cylinder

The Festo DSNU-25-20-PPV-A is typically used in:

Assembly and handling systems
Light clamping and positioning tasks
Packaging and sorting equipment
Small automation modules and fixtures
