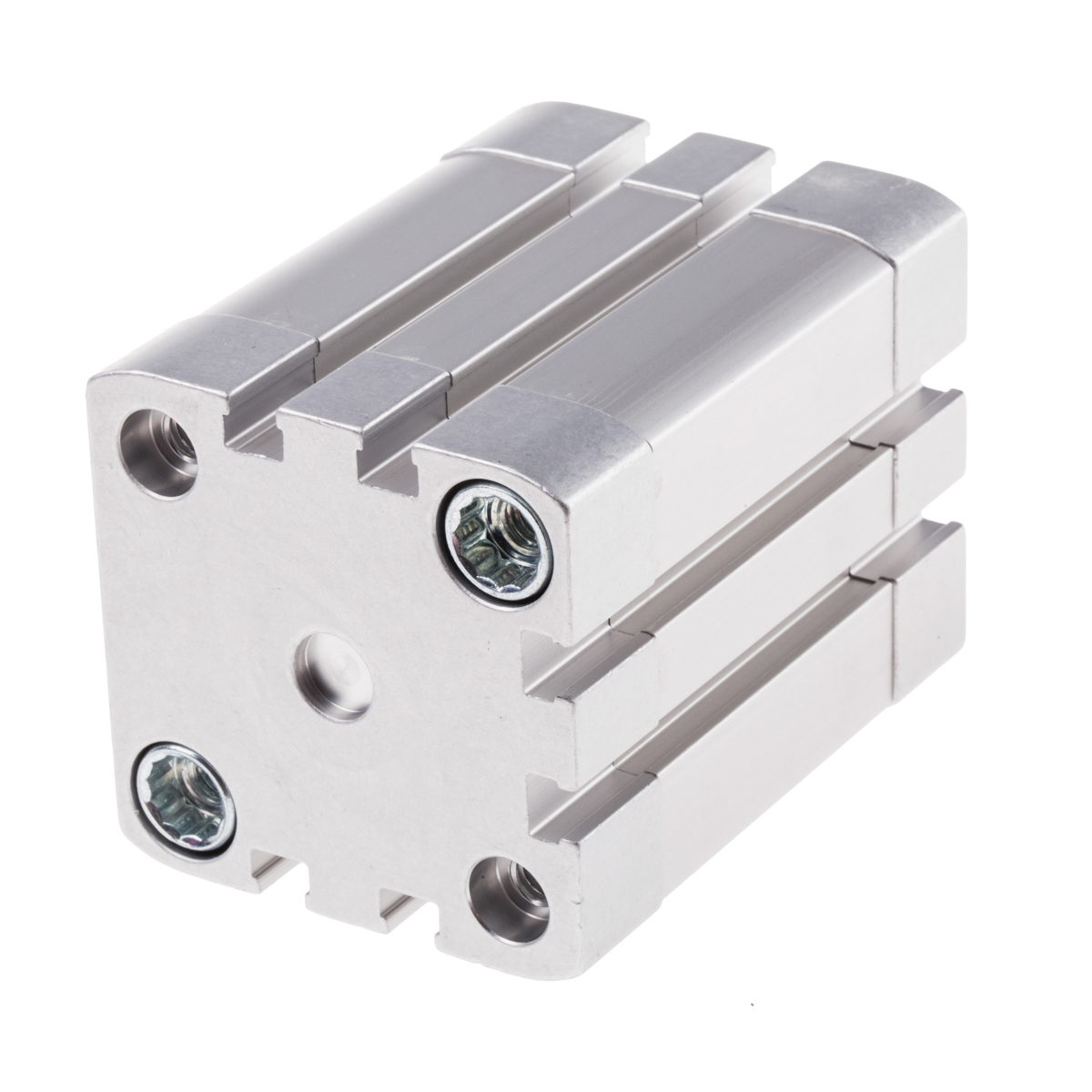

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 30mm stroke

Enrgtech Part No: ET13928935
|
Manufacturer Part No:
ADN-40-30-I-P-A
|
Manufacturer: Festo

ADN-40-30-I-P-A Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 30mm stroke

Product Information

Port Connection:

G 1/8

Dimensions:

54.5 x 54.5 x 81.1mm

Maximum Operating Pressure:

10 bar

Piston Rod Thread Gender:

Female

Model Number p:

536304

Stroke:

30mm

Pneumatic Connection:

G 1/8

Height:

54.5mm

Width:

54.5mm

Length:

81.1mm

Manufacturer Series:

ADN

Action:

Double

Checking for live stock

The Festo ADN-40-30-I-P-A is a compact, double-acting pneumatic cylinder designed for short-stroke linear motion in confined spaces. With a 40 mm bore and a 30 mm stroke, it is commonly used in automation systems that need precise, repeatable motion without using bulky standard cylinders. This model is part of Festo’s ADN compact cylinder range, built for consistent performance in industrial environments where reliability matters more than appearance.

Unmatched Advantages of Buying the Festo 536304 Double-Action Pneumatic Compact Cylinder

Compact body allows installation in tight machine layouts.
Compact housing for space-restricted installations.
Double-acting operation for controlled forward and return movement.
40 mm bore for balanced force output.
30 mm fixed stroke for short, precise motion cycles.
Designed to mount easily into automation frames, fixtures, or machine assemblies.

Broad Range Application

This cylinder is typically used in automated production lines where fast, repeatable movement is required. It performs well in tasks such as positioning, clamping, ejecting, or guiding components during assembly or packaging processes.

Pick-and-place units
Assembly automation
Packaging and labelling machines
Light material handling systems
