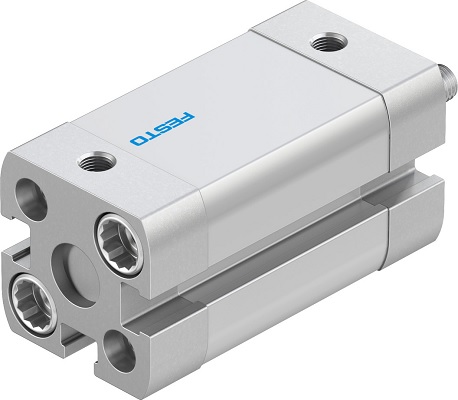

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 40mm stroke

Enrgtech Part No: ET13928931
|
Manufacturer Part No:
ADN-25-40-I-P-A
|
Manufacturer: Festo

ADN-25-40-I-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 40mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Elastic

Dimensions:

39.5 x 39.5 x 84.5mm

Weight:

156g

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536265

Stroke:

40mm

Pneumatic Connection:

Height:

39.5mm

Width:

39.5mm

Checking for live stock

The Festo ADN-25-40-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled movement is required. With a 25 mm bore and a 40 mm stroke, it delivers reliable linear motion in compact automation setups, assembly stations, and machine tooling. This cylinder is commonly used where standard cylinders are too long or bulky. Its short body length helps reduce overall machine size without sacrificing performance.

Unmatched Advantages of Choosing the Festo 536265 Double-Action Pneumatic Compact Cylinder

The ADN series is built for consistency and long service life. The double-acting design allows controlled movement in both directions using compressed air, making it suitable for repetitive motion tasks.

Compact body for space-restricted machines.
Smooth and repeatable piston movement.
Stable performance during continuous cycles.
Predictable movement.
Compact installation.
Long operating life.
Minimal downtime.

Wide Application Range

This cylinder is typically installed in automated machinery where precise positioning and repeatability are more critical than high force. The 25 mm bore provides balanced force output for light to medium-duty tasks. Common uses include:

Pick-and-place systems
Packaging and labelling machines
Assembly and clamping mechanisms
Small presses and guiding movements

Catalogue - Automation Technology(Technical Reference)

ADN-25-40-I-P-A Specification Sheet(Technical Reference)

Festo ADN/AEN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
