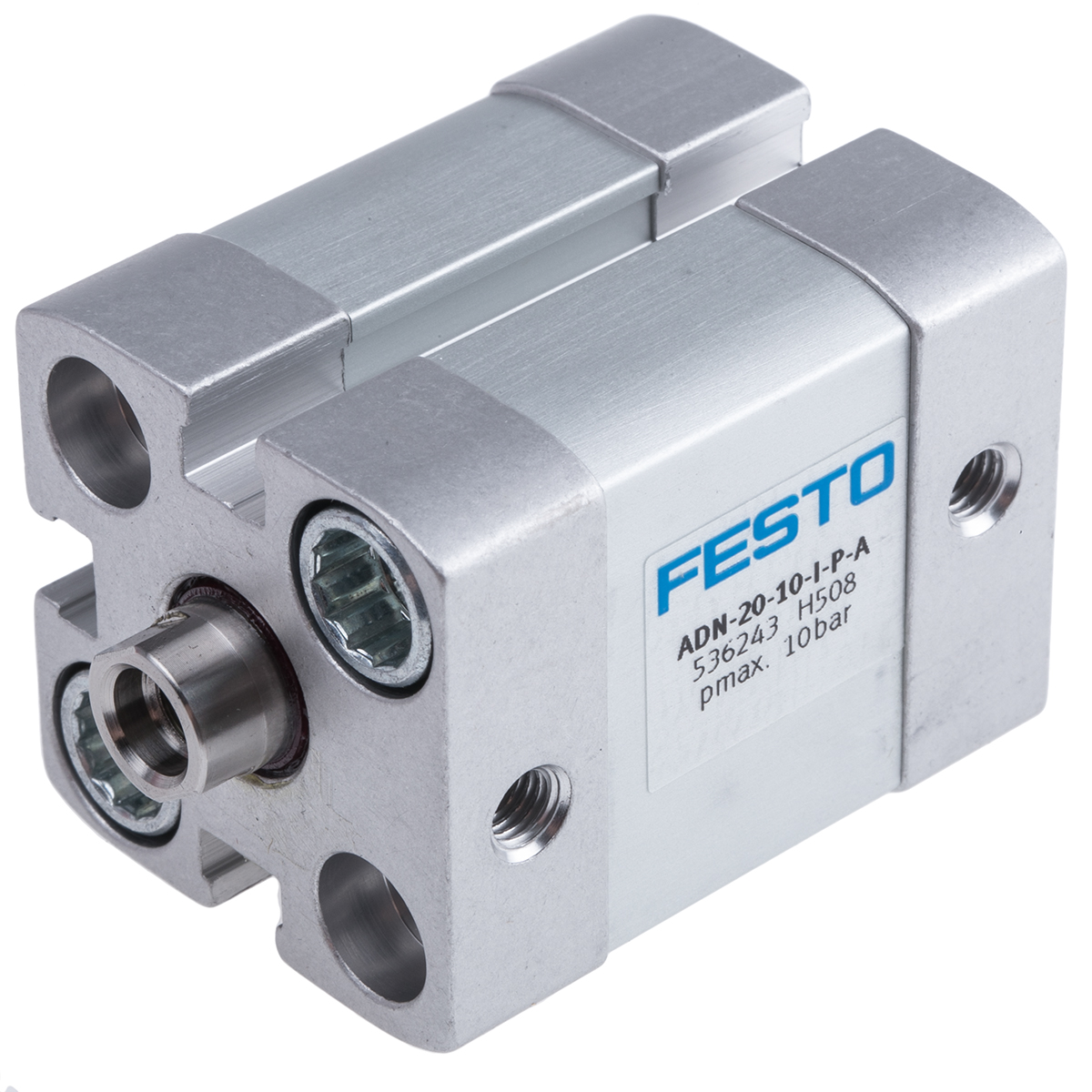

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke

Enrgtech Part No: ET13878263
|
Manufacturer Part No:
ADN-20-10-I-P-A
|
Manufacturer: Festo

ADN-20-10-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke

Product Information

Port Connection:

ISO Standard:

21287

Cushioning Type:

Elastic

Dimensions:

35.5 x 35.5 x 52.5mm

VDMA Standard:

24364

Piston Rod Thread Gender:

Female

Model Number p:

536243

Stroke:

10mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Length:

52.5mm

Checking for live stock

The Festo ADN-20-10-I-P-A is a double-acting pneumatic compact cylinder designed for short, controlled movements in confined spaces. With a 20 mm bore and a 10 mm stroke, it is typically used in machines that require precise linear motion without the bulk of standard cylinders. This model is built for reliability in automated systems where consistency matters more than long travel distances.

Special Features of the Festo 536243 Double-Action Pneumatic Cylinder

The compact body allows this cylinder to fit into tight machine layouts while still delivering stable force output. Its short stroke reduces flex and improves repeatability, especially in pick-and-place units or clamping mechanisms.

20 mm bore for balanced force output.
10 mm stroke for precise short movements.
Compact housing for space-restricted assemblies.
Keeps motion predictable even during continuous cycling.

Double-Acting Operation for Controlled Motion

Being double-acting, the cylinder uses compressed air for both extension and retraction. This provides better control than single-acting designs, especially in automated systems where timing and position accuracy are essential.

Field Applications of the Product

This compact cylinder is typically used in:

Automated assembly machines
Small clamping and positioning tasks
Packaging and sorting equipment
Pneumatic handling systems
Industrial automation setups with limited space

ADN-20-10-I-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)
