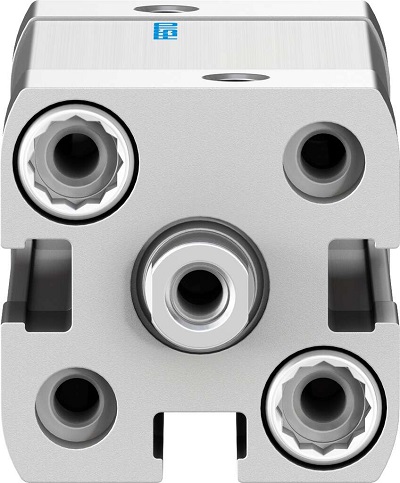

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 40mm stroke

Enrgtech Part No: ET13878262
|
Manufacturer Part No:
ADN-20-40-I-P-A
|
Manufacturer: Festo

ADN-20-40-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 40mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Elastic

Dimensions:

35.5 x 35.5 x 82.5mm

Weight:

131g

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536248

Stroke:

40mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Checking for live stock

The Festo ADN-20-40-I-P-A is a double-acting pneumatic compact cylinder designed for short-stroke linear movement in limited installation spaces. With a 20 mm bore and a 40 mm stroke, it is commonly used in automation systems where space is tight, but consistent force and repeatability are required. This cylinder is built for controlled forward and return motion using compressed air, making it suitable for automated machinery, assembly lines, and positioning tasks.

Core Capabilities of the Festo 536248 Double-Action Pneumatic Cylinder

The ADN series is known for its compact body design, allowing installation where standard cylinders would not fit. The short overall length helps reduce machine footprint without sacrificing performance.

20 mm bore for balanced force output.
40 mm stroke for short, precise movements.
Compact housing for space-restricted setups.

Typical Uses of the Product

This cylinder is typically used in:

Pick-and-place mechanisms
Clamping and holding units
Light pressing or pushing operations
Packaging and assembly machines

Catalogue - Automation Technology(Technical Reference)

ADN-20-40-I-P-A Specification Sheet(Technical Reference)

Festo ADN/AEN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
