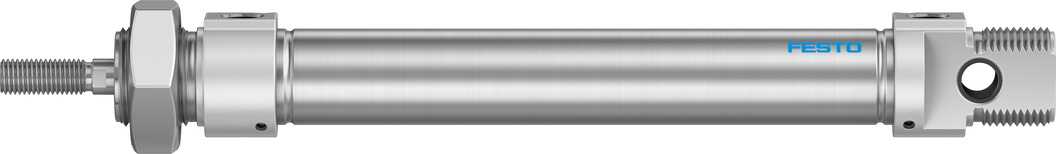

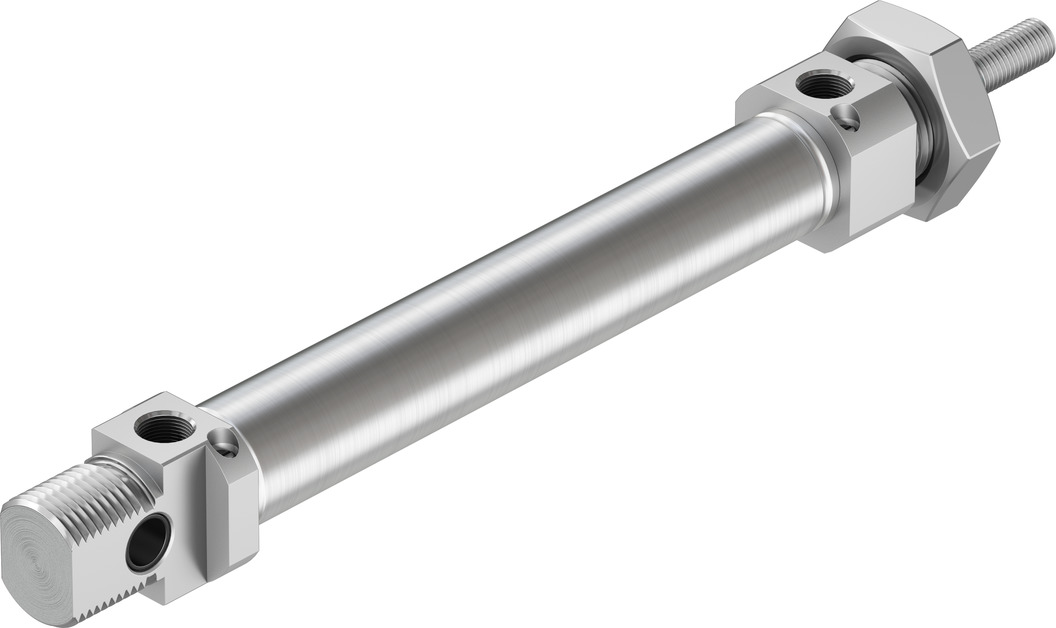

Festo DSNU-20-100-PPV-A, Double Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET13846892
|
Manufacturer Part No:
DSNU-20-100-PPV-A
|
Manufacturer: Festo

DSNU-20-100-PPV-A Festo , Double Action Pneumatic Roundline Cylinder

Product Information

Maximum Piston Speed:

100mm/s

Cushioning Type:

Pneumatic

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

19239

Action Type:

Double Acting

Length:

232mm

Standards/Approvals:

CE marking (EU Explosion Protection Directive), ISO 6432, ATEX II 2GD, Germanischer Lloyd

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Rear, Front, Swivel, Direct, Flange, Foot

Checking for live stock

The Festo DSNU-20-100-PPV-A is a double-acting pneumatic cylinder used for linear motion in industrial automation systems. It converts compressed air into controlled forward and return movement, making it suitable for simple push, pull, lift, or positioning tasks. With a 20 mm bore and 100 mm stroke, it fits well into compact machines where space and repeatability matter. This cylinder is designed for continuous use in production environments. It focuses on reliability and predictable motion rather than complexity.

Unmatched Advantages of Investingin the Festo 19239 Double Action Pneumatic Cylinder

The DSNU series uses a round body design that allows flexible mounting and easy integration into existing systems. The piston rod and cylinder body are built to handle repeated motion cycles without excessive wear.

Stainless steel piston rod for durability.
Compact round housing for tight installations.
Smooth internal surface for stable movement.
Reduced mechanical shock.
Quieter operation.
Longer service life.

Controlled Motion with Adjustable Cushioning

This model includes adjustable pneumatic cushioning at both ends of the stroke. Cushioning reduces impact at end positions, helping protect the cylinder, mounting hardware, and connected machine parts.

Broad Range Application

The DSNU-20-100-PPV-A works with standard compressed air systems and common pneumatic fittings. It connects easily with valves, air preparation units, and control systems already used in industrial setups.

Packaging machines
Assembly lines
Pick-and-place units
Material handling systems

Instruction Sheet - DSNU(-S) Round Cylinder(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

DSNU-20-100-PPV-A Specification Sheet(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)

Brochure - Simply Part of The Solution(Technical Reference)
