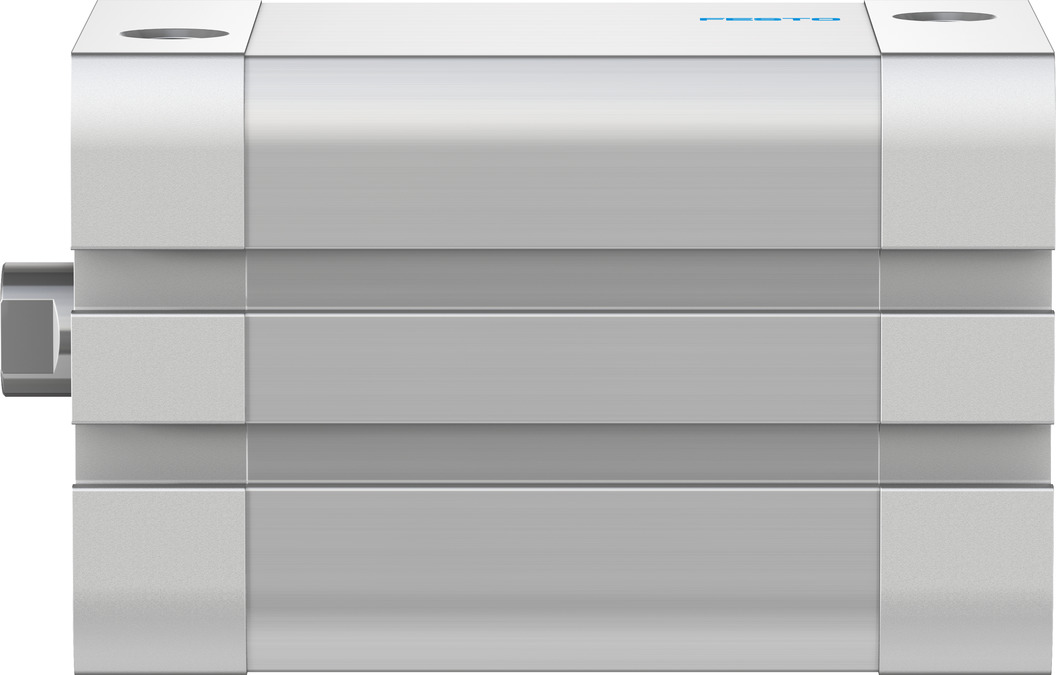

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 40mm stroke

Enrgtech Part No: ET13829925
|
Manufacturer Part No:
ADN-40-40-I-P-A
|
Manufacturer: Festo

ADN-40-40-I-P-A Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 40mm stroke

Product Information

Port Connection:

G 1/8

ISO Standard:

21287

Cushioning Type:

Elastic

Dimensions:

54.5 x 54.5 x 91.1mm

VDMA Standard:

24364

Piston Rod Thread Gender:

Female

Model Number p:

536305

Stroke:

40mm

Pneumatic Connection:

G 1/8

Height:

54.5mm

Width:

54.5mm

Length:

91.1mm

Checking for live stock

The Festo ADN 40 40 I P A is a compact, double acting pneumatic cylinder with a 40 mm bore and 40 mm stroke, engineered for high performance automated systems. Designed to meet ISO 21287 standards, this model features elastic cushioning rings at both ends for gentle deceleration and long-term durability, alongside a corrosion-resistant high-alloy steel piston rod and anodised aluminium barrel. With a maximum operating pressure of 10 bar and an operating temperature range from –20 °C to +80 °C, it is ideal for medium duty applications across industrial, automotive, or food & beverage environments. Units are easily installed via through hole or female thread mounting, while sensor slots support flush mounted proximity sensors for seamless automation compatibility.

Why Choose the Festo ADN 40 40 I P A Pneumatic Cylinder?

Choose the Festo ADN 40 40 I P A when you need a robust, precise, and efficient compact pneumatic cylinder tailored to tight installations. Its combination of reliable cushioning, flexible mounting options, and support for contactless position detection makes it an excellent choice for retrofit and new installations.

Product Functional Highlights – Core Features & Benefits

Double acting operation delivers approximately 754 N push out and 686 N pull in force at 6 bar, offering powerful linear actuation
Compact size (approx. 54.5 × 54.5 × 91.1 mm), suitable for space constrained applications
Elastic cushioning rings at both ends reduce end position impact and extend component lifespan
Flexible mounting via through hole or M8 female thread simplifies installation in various assemblies
Sensor slots on three sides accommodate flush mounted proximity sensors for precise feedback integration
Operating pressure range 0.6–10 bar supports versatile application scenarios.

Brochure - The Future of Standard Cylinders(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)

ADN-40-40-I-P-A Specification Sheet(Technical Reference)
