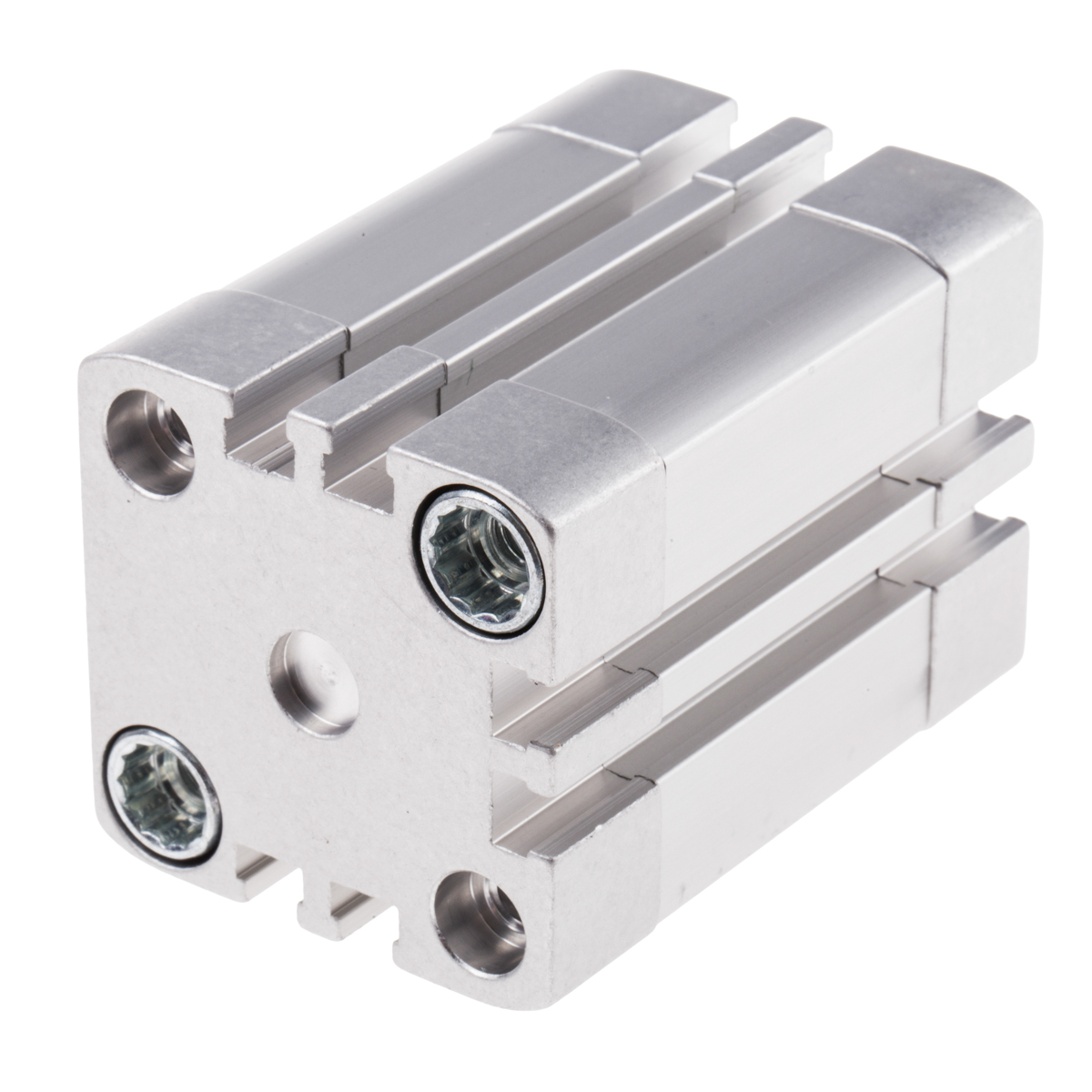

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 25mm stroke

Enrgtech Part No: ET13825810
|
Manufacturer Part No:
ADN-32-25-I-P-A
|
Manufacturer: Festo

ADN-32-25-I-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 25mm stroke

Product Information

Port Connection:

G 1/8

ISO Standard:

ISO 21287

Cushioning Type:

Elastic

Dimensions:

47 x 47 x 75mm

VDMA Standard:

VDMA24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536282

Stroke:

25mm

Pneumatic Connection:

G 1/8

Height:

47mm

Width:

47mm

Length:

75mm

Checking for live stock

The Festo ADN-32-25-I-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but reliable linear movement is required. With a 32 mm bore and a 25 mm stroke, it provides controlled push-and-pull motion using compressed air, making it suitable for automation systems that demand accuracy and repeatability. This cylinder is typically used in machinery where compact size, consistent force, and long service life matter more than oversized components.

Exceptional Advantages of Buying the Festo 536282 Double-Action Pneumatic Cylinder

The ADN series is known for its compact body design, allowing easy installation in confined machine layouts. Despite its small footprint, this cylinder delivers stable movement across repeated cycles, making it suitable for continuous operation in automated environments.

Compact body for space-restricted assemblies.
Double-acting design for controlled extension and retraction.
Consistent motion under varying load conditions.
Integrates smoothly into existing pneumatic systems.

Built for Tight Spaces and Stable Operation

The cylinder is designed to maintain alignment during motion, reducing wear on seals and internal components. Its guided piston movement helps ensure smooth operation even in applications with frequent cycling. The 25 mm stroke length makes it suitable for short linear movements such as clamping, positioning, pushing, or ejecting parts within automated machinery.

Typical Industrial Applications

This pneumatic cylinder is widely used in:

Automated assembly machines
Packaging and labelling equipment
Material handling systems
Clamping and positioning units
Industrial production lines

ADN-32-25-I-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)
