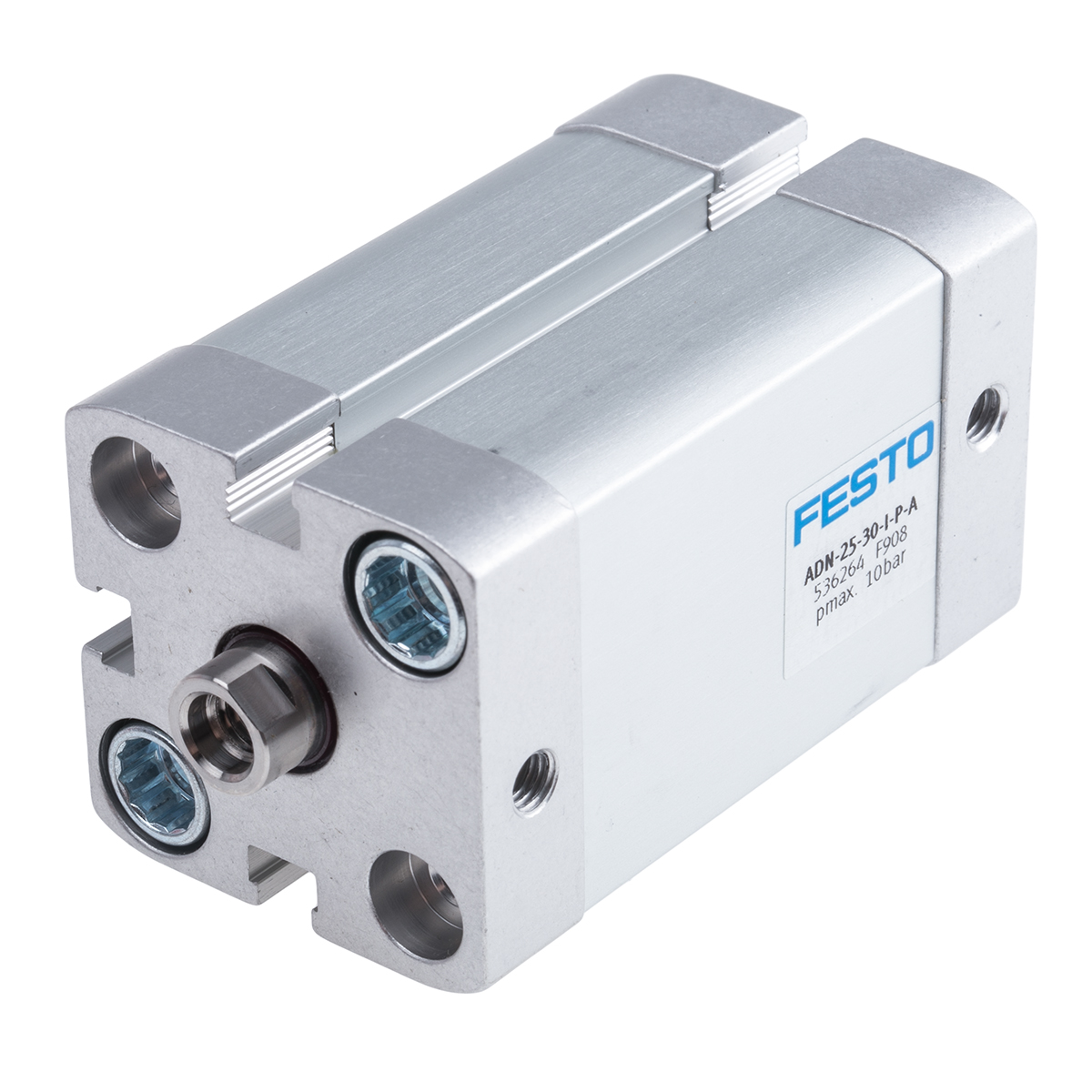

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 30mm stroke

Enrgtech Part No: ET13815957
|
Manufacturer Part No:
ADN-25-30-I-P-A
|
Manufacturer: Festo

ADN-25-30-I-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 30mm stroke

Product Information

Port Connection:

Dimensions:

39.5 x 39.5 x 74.5mm

Maximum Operating Pressure:

10 bar

Piston Rod Thread Gender:

Female

Model Number p:

536264

Stroke:

30mm

Pneumatic Connection:

Height:

39.5mm

Width:

39.5mm

Length:

74.5mm

Manufacturer Series:

ADN

Action:

Double

Checking for live stock

The Festo ADN-25-30-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but reliable linear movement is still required. With a 25 mm bore and a 30 mm stroke, it delivers controlled push-and-pull motion in automation systems, machine assemblies, and production equipment. This cylinder is generally used where standard ISO cylinders are too long. Its compact body allows it to fit easily into confined machine frames and assemblies without sacrificing performance.

Unparalleled Benefits of Choosing the Festo 536264 Double-Action Pneumatic Cylinder

As a double-acting cylinder, compressed air is used for both extension and retraction. This provides better control over movement than spring-return designs and makes it suitable for repetitive, cycle-based operations.

Consistent forward and return motion.
Stable force output for short strokes.
Smooth operation during frequent cycling.
Compact body for space-restricted machines.
Standard mounting options for easy integration.
Durable seals for long service life.
Designed for clean industrial air systems.

Broad Range Application

This cylinder is widely used in:

Automated assembly machines
Pick-and-place units
Packaging and labelling systems
Clamping and positioning tasks
Small material handling mechanisms

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)

ADN-25-30-I-P-A Specification Sheet(Technical Reference)
