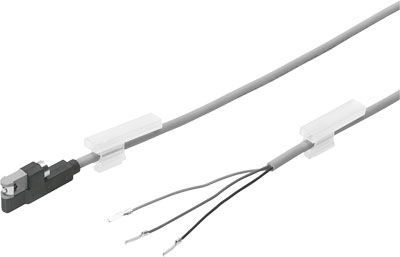

Festo SMT-10G Series PNP Pneumatic Position Detector

Enrgtech Part No: ET16944290
|
Manufacturer Part No:
SMT-10G-PS-24V-E-2,5Q-OE
|
Manufacturer: Festo

SMT-10G-PS-24V-E-2-5Q-OE Festo SMT-10G Series PNP Pneumatic Position Detector

Product Information

Electrical Connection Type:

Plug M8X1, Cable, 3-Wire, Cable with Plug, 3-Pin

Hazardous Area Certification:

Output Function:

PNP, Bipolar, Contact, NPN

Measurement Principle:

Proximity Sensor

IP Rating:

IP68, IP65

Series:

SMT-10G

Switching Action:

PNP

Model Number:

547862

Housing Material:

High Alloy Stainless Steel, Nickel Plated Brass, Polyamide

Standards/Approvals:

RoHS-, EN 60947-5-2-, cULus listed (OL)-, C-Tick-, CE -

Voltage:

30 V dc

Minimum Operating Temperature:

-20°C

Checking for live stock

The Festo SMT-10G-PS-24V-E-2,5Q-OE is a pneumatic position detector used to sense the end position of pneumatic cylinders. It detects the piston magnet through the cylinder wall and sends a clear PNP switching signal to the control system. This makes it useful in basic automation setups that require reliable position feedback without complex configuration. It is typically installed on standard pneumatic cylinders in factory automation, packaging lines, and assembly systems.

Standout Features and Benefits of the Festo 547862 PNP Pneumatic Position Detector

This sensor is designed to do one job well: detect when a pneumatic cylinder reaches a specific position. Once the piston reaches the sensing point, the sensor switches and sends a signal to the PLC or controller.

Detecting end positions of pneumatic cylinders.
Confirming movement before the next machine step.
Basic automation sequencing.
Safety-related position confirmation.
PNP switching output.
24 V DC operation.
Pre-wired connection (2.5 m cable).
No programming or calibration needed.
Prevents timing errors and missed movements.

Electrical Output and Installation

The SMT-10G-PS-24V-E-2,5Q-OE features a PNP output and operates on 24 V DC, making it compatible with most industrial control systems. Installation is straightforward, with a compact housing that mounts directly into the cylinder slot.

Wide Application Range

This sensor is sealed to IP65 and IP68, meaning it can handle dust, moisture, washdowns, and exposure to oil or coolant. It is designed to keep working in environments where basic sensors often fail.

Manufacturing lines
Pneumatic automation systems
Packaging and material handling
Industrial machinery with frequent washdowns
