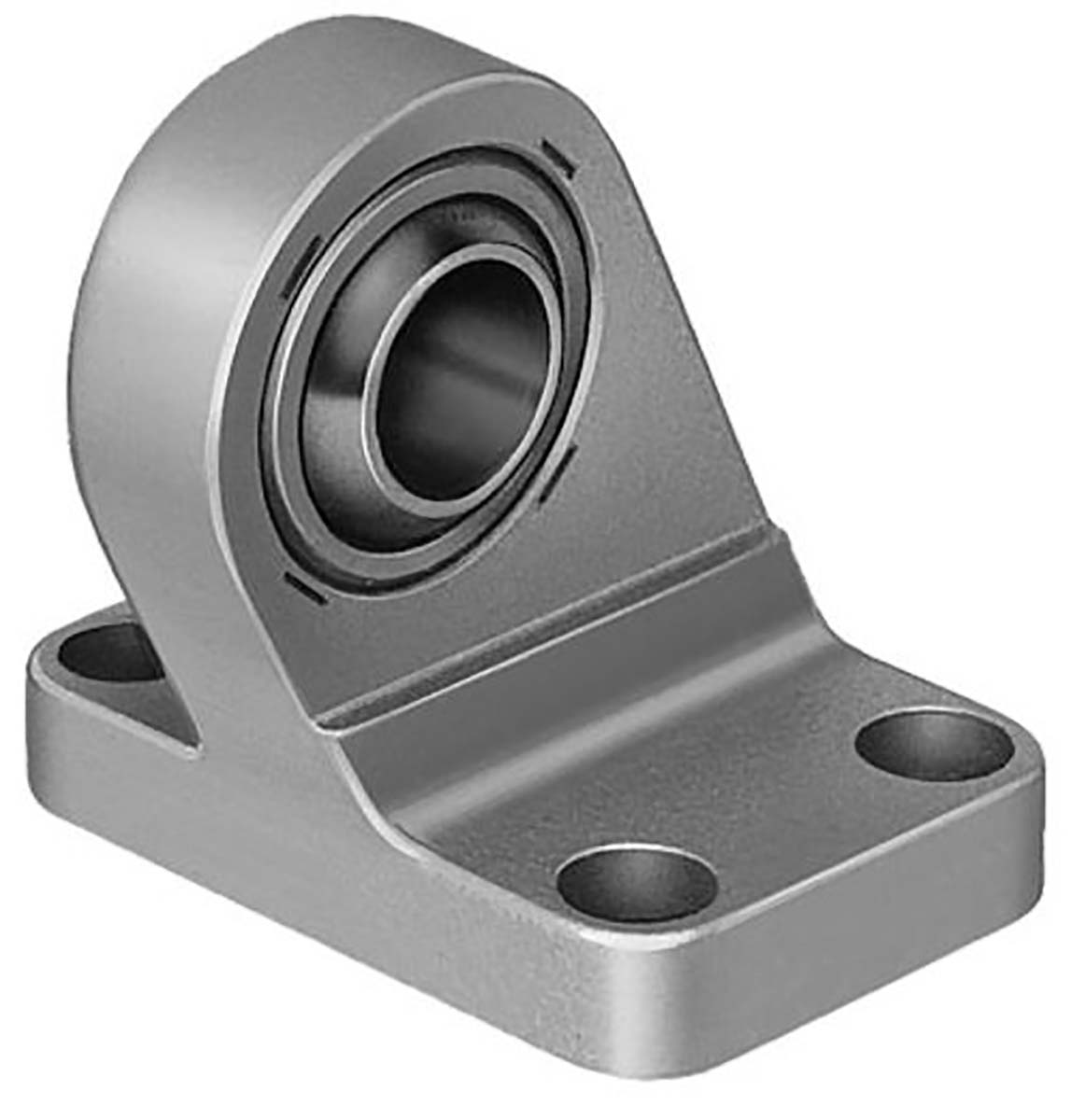

Festo LSNG-63, Clevis Foot 63mm

The Festo LSNG-63 clevis is a mechanical mounting accessory for pneumatic cylinders with a 63 mm bore. Its main job is simple: allow the cylinder rod to pivot during movement so the load stays aligned and stress on the rod is reduced. This type of mounting is commonly used where straight-line motion alone is not enough. It is a fundamental but important part in many pneumatic setups, especially where smooth movement and long service life matter.

How It Benefits Users

The LSNG-63 connects to the piston rod end, forming a hinged joint. This allows slight angular movement during operation, which helps prevent side loads that can damage seals or bend the rod over time.

• Supports pivoting motion.
• Reduces mechanical stress on the cylinder.
• Keeps movement smooth and controlled.
• Perfect for systems that move repeatedly or under varying loads.

Design and Build-Quality

Made to match Festo pneumatic cylinders with a 63 mm bore, the LSNG-63 is built from durable metal for strength and stability. Its design ensures a secure fit while still allowing free movement at the joint. The clevis pin connection makes installation straightforward and keeps the assembly easy to service when adjustments or replacements are needed.

Application Potential of the Festo 31743 Clevis 63mm

It is commonly paired with guided cylinders, standard ISO cylinders, or custom pneumatic assemblies.

• Pneumatic automation systems
• Industrial machinery and assembly lines
• Packaging and material handling equipment
• Linear motion setups requiring pivot points

For more information please check the datasheets.
