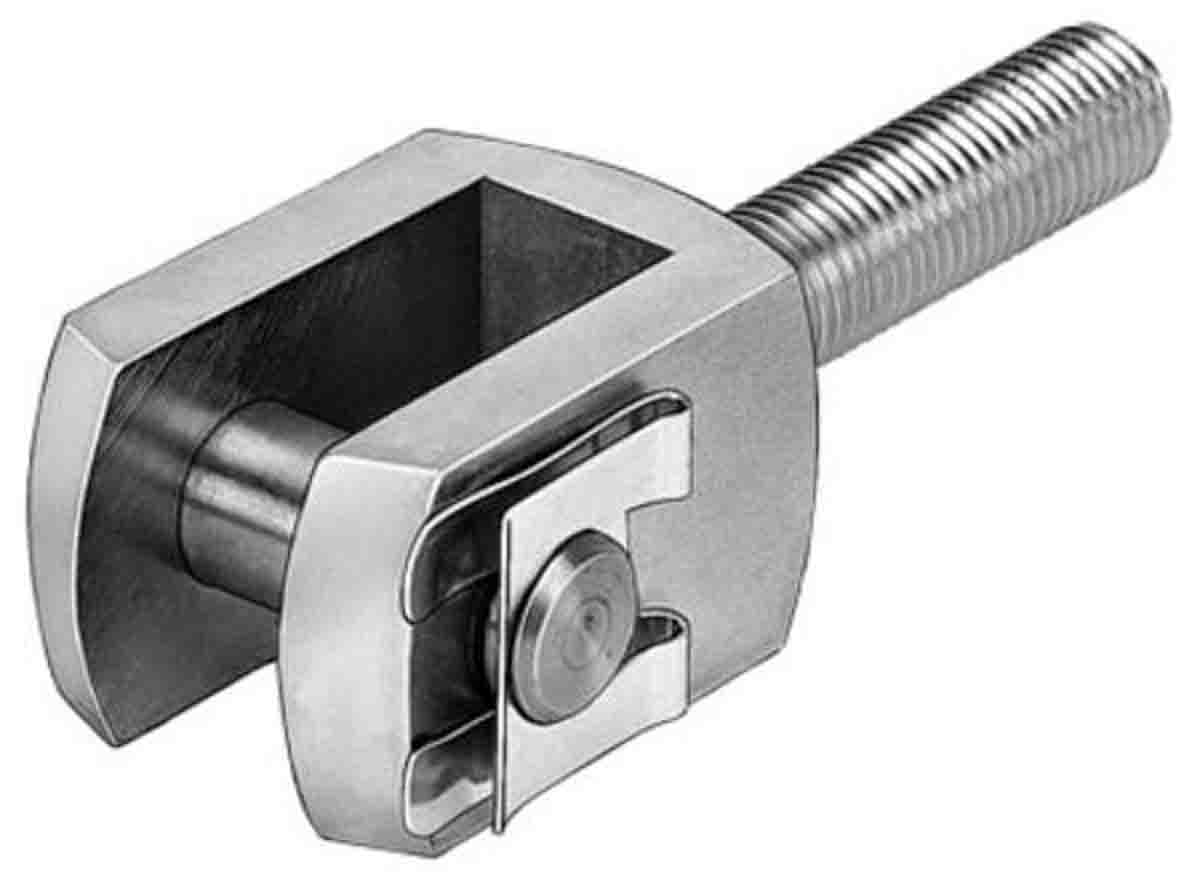

Festo SGA-M10X1,25, Rod Clevis

The Festo SGA-M10X1,25 rod clevis is a basic mechanical connector used to link a cylinder rod to moving or pivoting machine parts. It is designed for applications where the cylinder needs to move freely while following angular motion during operation. This type of clevis is commonly used with pneumatic cylinders mounted on swivel or hinge-style supports. Its job is straightforward: allow controlled movement without stressing the cylinder rod.

Exceptional Advantages of Buying the Festo 10mm Rod Clevis, SGA Series

This rod clevis is designed to withstand repeated motion in automation and pneumatic systems. The threaded M10 × 1.25 connection ensures a secure fit on compatible piston rods, while the clevis shape allows the joint to rotate during extension and retraction.

• Designed for pivoting and angular movement.
• Supports smooth force transfer.
• Helps reduce side load on the cylinder rod.
• Quick mounting on threaded piston rods.
• Compatible with swivelling cylinder mounts.
• Low-maintenance mechanical joint.

Easy to Install and Maintain

The SGA rod clevis is simple to install and remove during maintenance or system adjustments. Once fitted, it allows the cylinder to operate naturally without binding or misalignment. This makes it suitable for systems that require frequent movement cycles. It fits cleanly into both new installations and replacement setups.

Versatility in Applications

Anywhere a cylinder needs to push or pull while following a changing angle, this rod clevis is a practical solution.

• Pneumatic automation systems
• Assembly and packaging machinery
• Conveyor and material handling equipment
• Industrial actuators with swivel mounts

For more information please check the datasheets.
