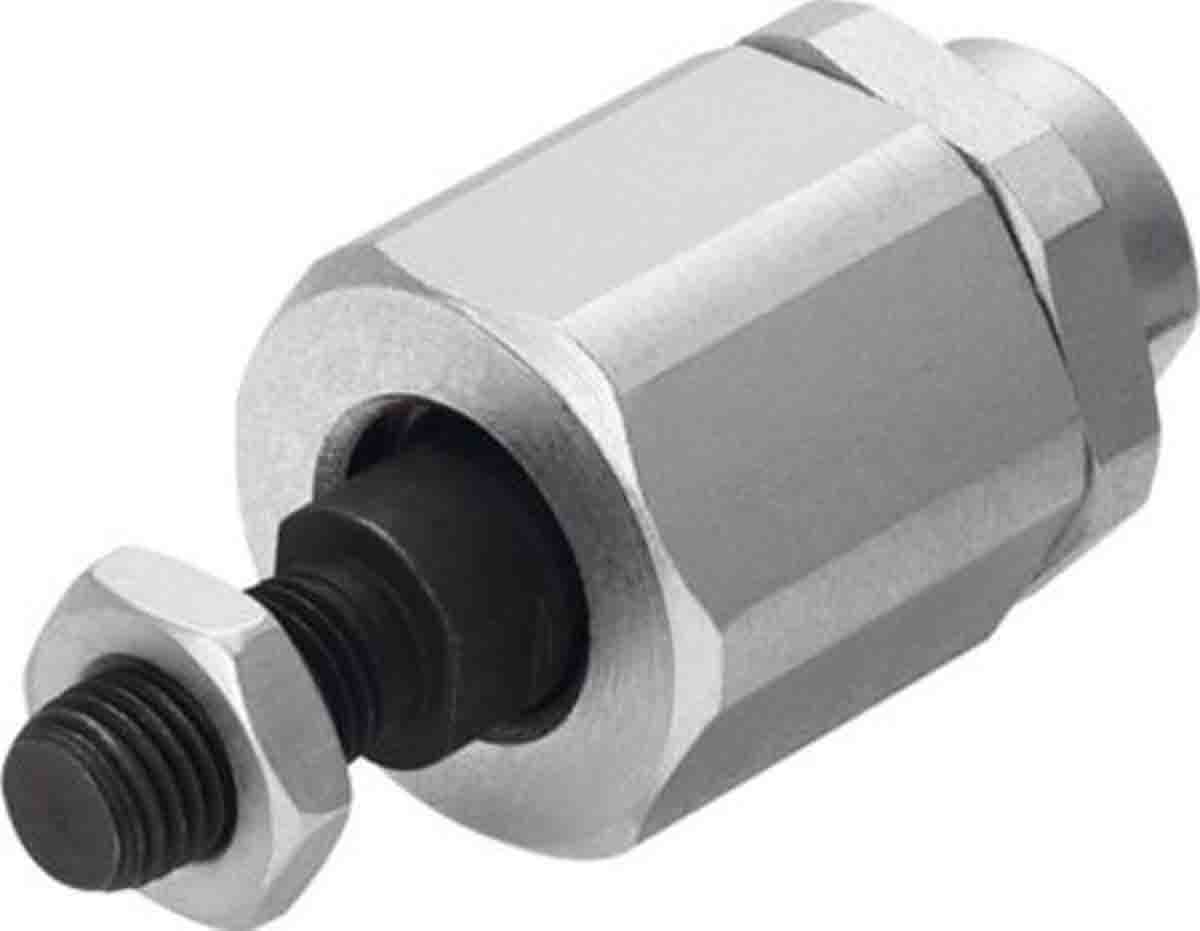

Festo 16mm Self-Aligning Rod Coupler

The Festo FK-M16 is a self-aligning rod coupler designed to connect 16 mm rods where perfect alignment is not guaranteed. It is typically used in pneumatic and mechanical assemblies where slight angular or lateral movement occurs during operation. Instead of forcing components into rigid alignment, this coupler allows controlled movement while maintaining a secure connection. It is a practical solution for systems that experience vibration, tolerance variation, or minor mounting offsets.

Possible Advantages of Buying the Festo16mm Self-Aligning Rod Coupler

This coupler compensates for misalignment between connected rods, helping reduce stress on actuators, guides, and bearings. By allowing limited angular movement, it prevents binding and uneven wear that often occurs with fixed couplings.

• Allows self-alignment during motion.
• Reduces mechanical stress on connected parts.
• Helps maintain smooth linear movement.
• Designed for 16 mm rod connections.
• Compact and mechanically stable.
• Suitable for continuous operation.

Solid Mechanical Coupler for Misalignment Issues

The FK-M16 is built for industrial environments. Its compact design fits easily into tight assemblies without adding unnecessary bulk. The clamping mechanism holds the rod securely while still allowing the flexibility needed for alignment correction. It is typically installed without special tools, keeping installation straightforward.

Product Use Cases

This rod coupler is often found in:

• Pneumatic cylinder assemblies
• Linear guide systems
• Automation and handling equipment
• Machinery with moving or floating mounts

For more information please check the datasheets.
