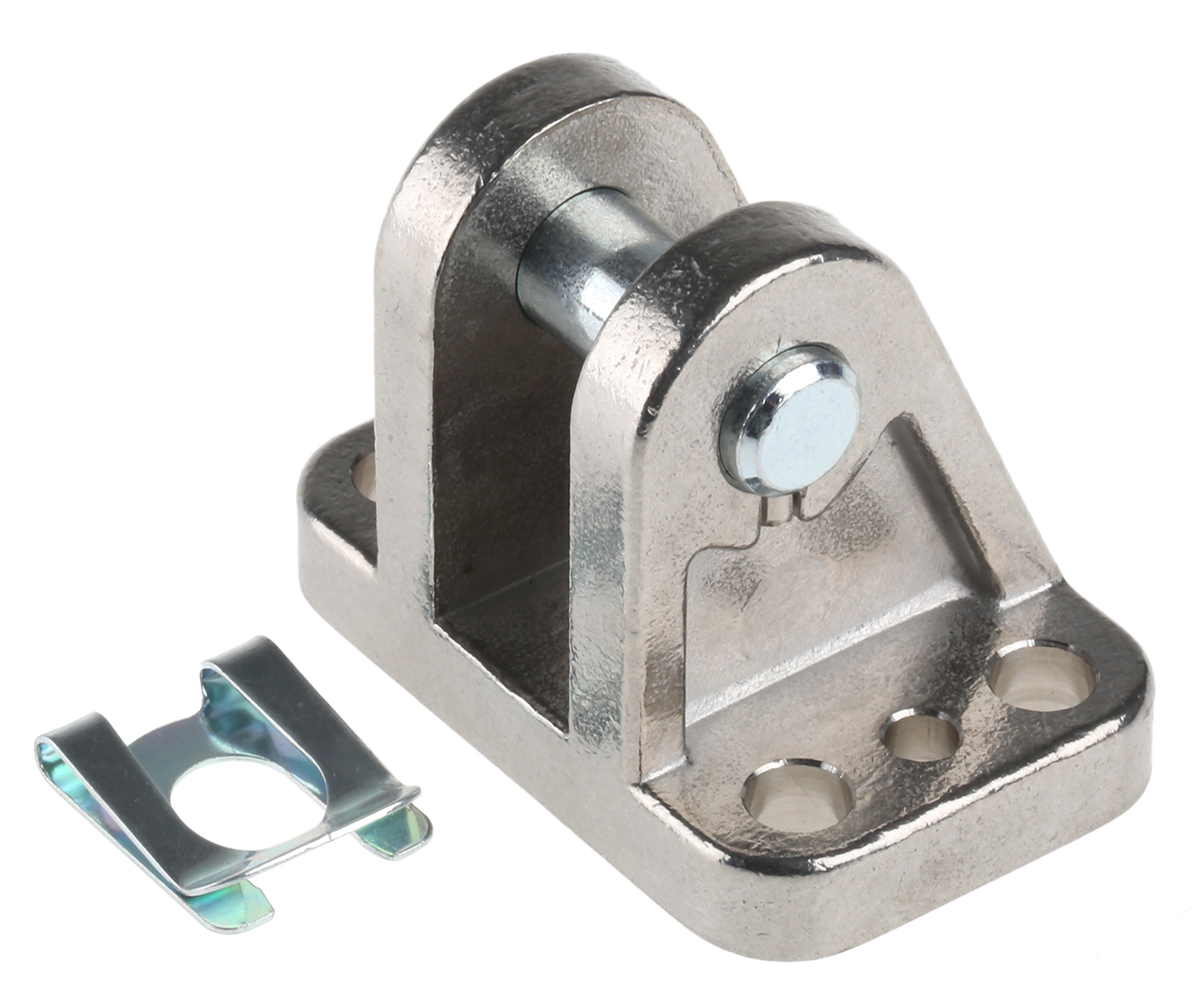

Festo LBG-32, Foot

The Festo LBG-32 is a mounting foot designed to support pneumatic cylinders, where stability and proper alignment are critical. It is used to securely fasten the cylinder body to a flat surface, helping prevent movement during operation. This mounting option is commonly selected when cylinders are installed horizontally or where extra support is needed at the base. It is a mechanical accessory, simple in purpose, but essential for keeping the cylinder fixed and operating as intended.

Designed to Fit Multiple Festo Cylinder Types

This mounting foot is compatible with several Festo cylinder series, making it useful in both mixed and standardised pneumatic setups.

Compatible cylinder types include:

• ADN cylinder
• ADNP cylinder
• AEN cylinder
• DNC cylinder
• DNG cylinder
• DNGU cylinder

Mounting Foot for Stable Cylinder Installation

The LBG-32 is built to match the dimensions and mounting points of the supported cylinders. Once installed, it keeps the actuator aligned with connected loads, reducing mechanical stress on the piston rod and seals. It is typically used in automation systems where cylinders perform repeated linear motion and need consistent positioning throughout operation.

Application Versatility of the Festo 31761 Foot 32mm

This mounting foot is typically used in:

• Industrial automation systems
• Pneumatic assembly lines
• Packaging and handling equipment
• Machinery where cylinders are floor or frame-mounted

For more information please check the datasheets.
