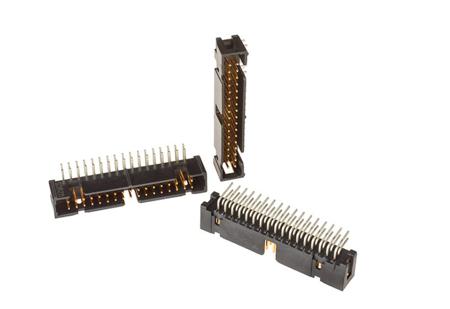

3M 2500 Series Right Angle, Straight Surface Mount, Through Hole PCB Header, 8 Contact(s), 2.54mm Pitch, 2 Row(s),

Enrgtech Part No: ET28458129
|
Manufacturer Part No:
Y2508-5002-SH 8P RA HDR 0.112 GF
|
Manufacturer: 3M

Y2508-5002-SH-8P-RA-HDR-0-112-GF 3M 2500 Series Right Angle, Straight Surface Mount, Through Hole PCB Header, 8 Contact(s), 2.54mm Pitch, 2 Row(s),

Product Information

Shrouded/Unshrouded:

Shrouded

Mounting Type:

Surface Mount, Through Hole

Series:

2500

Body Orientation:

Right Angle, Straight

Number of Rows:

Pitch:

2.54mm

Number of Contacts:

Checking for live stock

The 3M Y2508-5002-SH is a high-reliability right-angle PCB header from the 2500 Series, ideal for UK electronics applications requiring durable wire-to-board interconnects. This compact shrouded header features 8 gold-flash contacts in a 2.54 mm dual-row, surface-mount & through-hole hybrid design, combining easy assembly with robust mechanical strength. Its four-wall shroud with centre-slot polarisation ensures quick, error-free mating, while the high-temperature glass-filled polyester housing meets lead-free reflow demands. Rated from –55 °C to +105 °C, this header brings dependable performance to consumer, industrial, and communications PCBs across the UK.

Core Features and Benefits of Buying the 3M 2500 Series Right Angle, Straight Surface Mount, Through Hole PCB Header, 8 Contact(s)

Shrouded four-wall design with polarity key prevents mis-insertion and reduces assembly errors.
Gold-flash contacts improve long-term contact reliability in UK environments.
Hybrid SMT & through-hole mounting offers strong mechanical stability with efficient reflow soldering.
Wide operating temperature (–55 °C to +105 °C) suits industrial-grade UK applications.
Compact 2.54 mm dual-row footprint enables space-efficient wiring for compact UK devices.

Versatility in Application

Interfacing daughterboard modules in UK industrial controllers
Compact wiring for IoT and smart home devices
Connection headers in consumer electronics and IEC appliances
Reliable connectors for telecoms and communications gear

Datasheet - Y2508-5002-SH 8P RA HDR 0.112 GF(Technical Reference)
