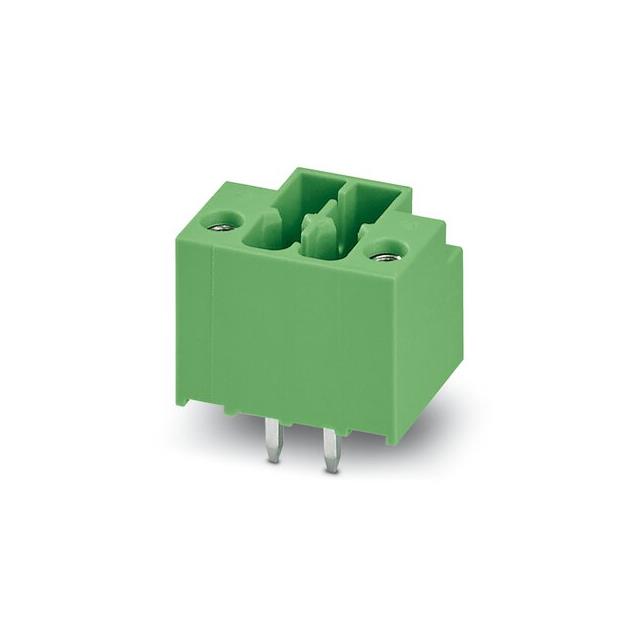

Phoenix Contact, DMCV, 2 Row, Top Entry Printed Circuit Board Connector

1054070 Phoenix Contact, DMCV, 2 Row, Top Entry Printed Circuit Board Connector
1054070
Phoenix Contact

Product Information

Pluggable Terminal Block Type:
Header
Series:
DMCV
Body Orientation:
Top Entry
Number of Rows:
2
Pitch:
3.5mm
HTSUS:
8536.69.4040
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-40°C ~ 100°C
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
20
Wire Gauge or Range - mm²:
-
title:
1054070
Plug Wire Entry:
-
Insulation Height:
0.394" (10.00mm)
edacadModel:
1054070 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/17941307
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.138" (3.50mm)
Current - IEC:
8A
Number of Levels:
2
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
160 V
Ingress Protection:
-
Features:
Flange
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON DMCV
Positions Per Level:
10
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
8 A
Pitch:
0.138" (3.50mm)
Contact Material:
Copper Alloy
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is DMCV 2 Row Top Entry Printed Circuit Board Connector manufactured by Phoenix Contact. The manufacturer part number is 1054070. The product dmcv, is a highly preferred choice for users. It has top entry body orientation. It comes in 2 of rows. Moreover, the product is 3.5mm. It is assigned with possible HTSUS value of 8536.69.4040. Moreover, it has solder terminal style. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -40°c ~ 100°c operating temperature range. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 20. 0.394" (10.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. The typical tail length of the product is [Contact Tail Lenght]. An IEC current of 8a. The product carries 2 levels. While 300 v is the typical voltage of the product. It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 160 v. The splendid features of the product include flange. The product is available in through hole configuration. It has a classic green colour. The product combicon dmcv, is a highly preferred choice for users. It has 10 positions each level. In addition, bulk is the available packaging type of the product. The product has a vertical of a header orientation. The typical current includes 8 a. Moreover, the product is 0.138" (3.50mm). The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
