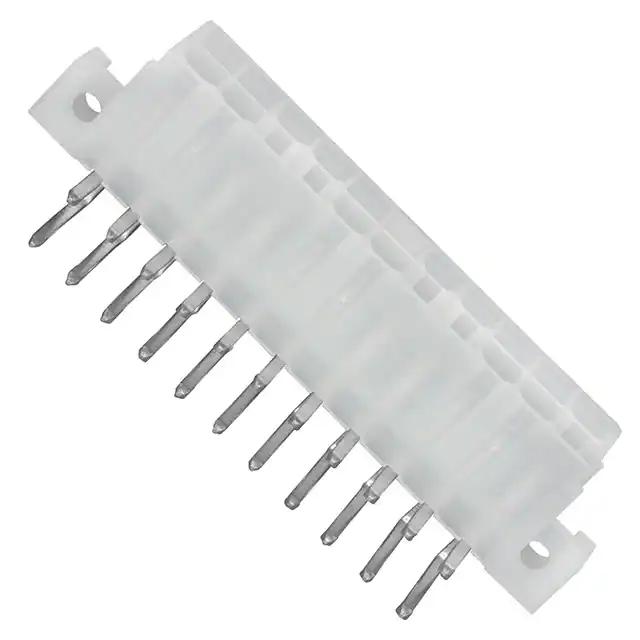

Molex Mini-Fit Jr 5569, 4.2mm Pitch, 22 Way, 2 Row, Right Angle PCB Header, Through Hole
Product Information
Shrouded/Unshrouded:
Shrouded
Number of Contacts:
22
Current Rating:
6.0A
Mounting Type:
Through Hole
Voltage Rating:
600.0 V
Series:
Mini-Fit Jr.
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
4.2mm
Contact Material:
Brass
Series Number:
5569
Manufacturer Standard Lead Time:
11 Weeks
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Through Hole, Right Angle 22 position 0.165" (4.20mm)
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
22
Contact Length - Post:
0.142" (3.60mm)
Insulation Height:
0.378" (9.60mm)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Natural
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Number of Positions Loaded:
All
Fastening Type:
Locking Ramp
Termination:
Solder
Pitch - Mating:
0.165" (4.20mm)
Features:
Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit Jr 5569
Packaging:
Bulk
Contact Finish - Mating:
Tin
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Brass
