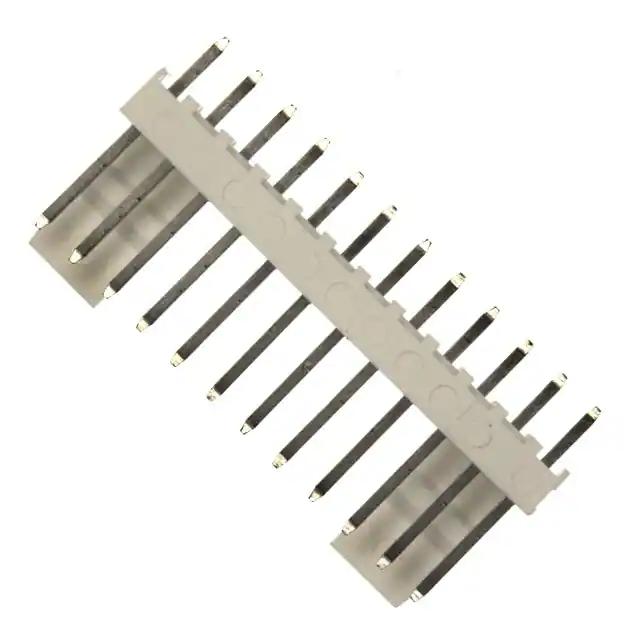

Molex KK 254 6410, 2.54mm Pitch, 12 Way, 1 Row, Straight PCB Header, Through Hole
Product Information
Shrouded/Unshrouded:
Unshrouded
Tail Pin Length:
3.56mm
Number of Contacts:
12
Current Rating:
4.0A
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Gender:
Male
Body Orientation:
Straight
Pitch:
2.54mm
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
1
Contact Plating:
Tin
Series:
KK 254
Mating Pin Length:
7.5mm
Contact Material:
Brass
Series Number:
6410
Manufacturer Standard Lead Time:
13 Weeks
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Through Hole 12 position 0.100" (2.54mm)
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
12
Contact Length - Post:
0.140" (3.56mm)
Overall Contact Length:
0.560" (14.22mm)
Insulation Height:
0.461" (11.70mm)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Shrouding:
Shrouded - 1 Wall
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Natural
Connector Type:
Header
Contact Length - Mating:
0.295" (7.49mm)
Number of Positions Loaded:
All
Fastening Type:
Friction Lock
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Through Hole
Series:
KK 6410
Packaging:
Bulk
Contact Finish - Mating:
Tin
Contact Type:
Male Pin
Contact Material:
Brass
Insulation Material:
Polyamide (PA), Nylon
Contact Finish - Post:
Tin
Checking for live stock
FAQs
Yes. You can also search 22-27-2121 on website for other similar products.
We accept all major payment methods for all products including ET16777887. Please check your shopping cart at the time of order.
You can order Molex brand products with 22-27-2121 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex KK 254 6410, 2.54mm Pitch, 12 Way, 1 Row, Straight PCB Header, Through Hole. You can also check on our website or by contacting our customer support team for further order details on Molex KK 254 6410, 2.54mm Pitch, 12 Way, 1 Row, Straight PCB Header, Through Hole.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16777887 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16777887.
Yes. We ship 22-27-2121 Internationally to many countries around the world.
This is KK 254 6410 2.54mm Pitch 12 Way 1 Row Straight PCB Header Through Hole manufactured by Molex. The manufacturer part number is 22-27-2121. It is supplied as unshrouded. Moreover, it has a standard 3.56mm pin tail length . The product contains 12 contacts. The product has a current rating of 4.0a. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. In addition, male is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 2.54mm. It allows solder termination method. It allows wire to board connector system. It comes in 1 of rows. The high-quality tin is used as contact plating material. The product kk 254, is a highly preferred choice for users. It has about 7.5mm mating pin in length . The product is made from sturdy brass materials. It carries [Serial Number] serial number. It has typical 13 weeks of manufacturer standard lead time. Additionally, the product is designed with board to cable/wire Style. It features connector header through hole 12 position 0.100" (2.54mm). Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 12. 0.140" (3.56mm) is the given possible contact length (post) values. The product has a 0.560" (14.22mm) of overall contact lentgh. 0.461" (11.70mm) of insulation height. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 1 wall. The product is widely employed in automotive, general purpose, medical, telecommunications. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. In addition, natural is the insulation color of the product. header Connector type offer robust functionality. It is 0.295" (7.49mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The product kk 6410, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has nice contact finishing of tin. It has typical contact type of male pin. It has a robust polyamide (pa), nylon insulation material. It has possible tin contact post finishing.
