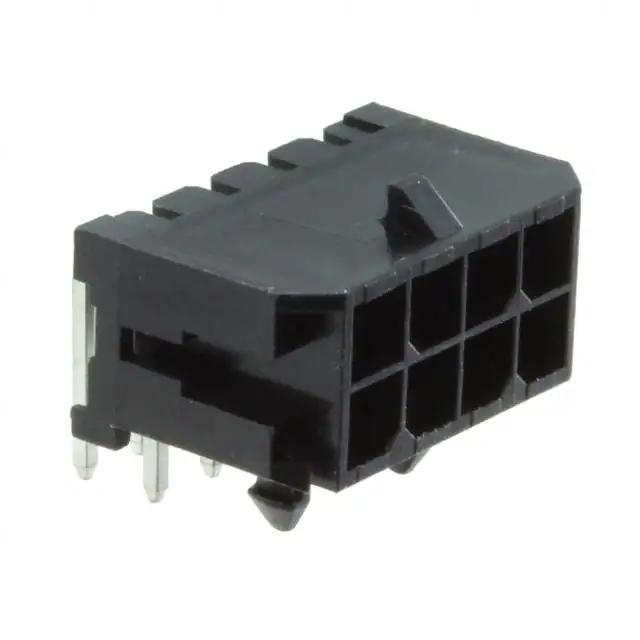

Amphenol FCI 10132449-0821GLF
Product Information
Current Rating:
12.5A
Mounting Type:
Through Hole
Series:
Minitek
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
3mm
Number of Contacts:
8
Manufacturer Standard Lead Time:
13 Weeks
Style:
Board to Cable/Wire
RoHS Status:
RoHS Compliant
Detailed Description:
Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
8
Contact Length - Post:
0.126" (3.20mm)
Insulation Height:
0.343" (8.71mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
2
Standard Package:
224
Contact Shape:
Square
Manufacturer:
Amphenol FCI
Voltage Rating:
250V
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Plug
Number of Positions Loaded:
All
Fastening Type:
Locking Ramp
Termination:
Solder
Pitch - Mating:
0.118" (3.00mm)
Features:
Board Lock, Glow Wire Compliant
Mounting Type:
Through Hole, Right Angle
Series:
Minitek Pwr® 3.0
Packaging:
Tray
Contact Finish - Mating:
Tin
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Other Names:
10132449-0821GLF-ND
609-5287
Insulation Material:
Polyamide (PA9T), Nylon 9T
Contact Material:
Copper Alloy
Checking for live stock
FAQs
Yes. You can also search 10132449-0821GLF on website for other similar products.
We accept all major payment methods for all products including ET14649952. Please check your shopping cart at the time of order.
You can order Amphenol FCI brand products with 10132449-0821GLF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol FCI 10132449-0821GLF. You can also check on our website or by contacting our customer support team for further order details on Amphenol FCI 10132449-0821GLF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14649952 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol FCI" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14649952.
Yes. We ship 10132449-0821GLF Internationally to many countries around the world.
This is manufactured by Amphenol FCI. The manufacturer part number is 10132449-0821GLF. The product has a current rating of 12.5a. The product is available in through hole configuration. The product minitek, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 3mm. The product contains 8 contacts. It has typical 13 weeks of manufacturer standard lead time. Additionally, the product is designed with board to cable/wire Style. The product is rohs compliant. It features connector header through hole, right angle 8 position 0.118" (3.00mm). The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 8. 0.126" (3.20mm) is the given possible contact length (post) values. 0.343" (8.71mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, medical, military, telecommunications. It is available in the standard package of 224. It has a typical square shape. The amphenol fci's product offers user-desired applications. Moreover, the product has a nominal 250v voltage rating. It carries ul94 v-0 of material flammability rating. It carries 0.118" (3.00mm) of row spacing. plug Connector type offer robust functionality. However, all is the Number of Positions Loaded. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board lock, glow wire compliant. The product is available in through hole, right angle configuration. The product minitek pwr® 3.0, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has nice contact finishing of tin. It has typical contact type of male pin. It has possible tin contact post finishing. Alternative Names include 10132449-0821glf-nd 609-5287. It has a robust polyamide (pa9t), nylon 9t insulation material. The product is made from sturdy copper alloy materials.
