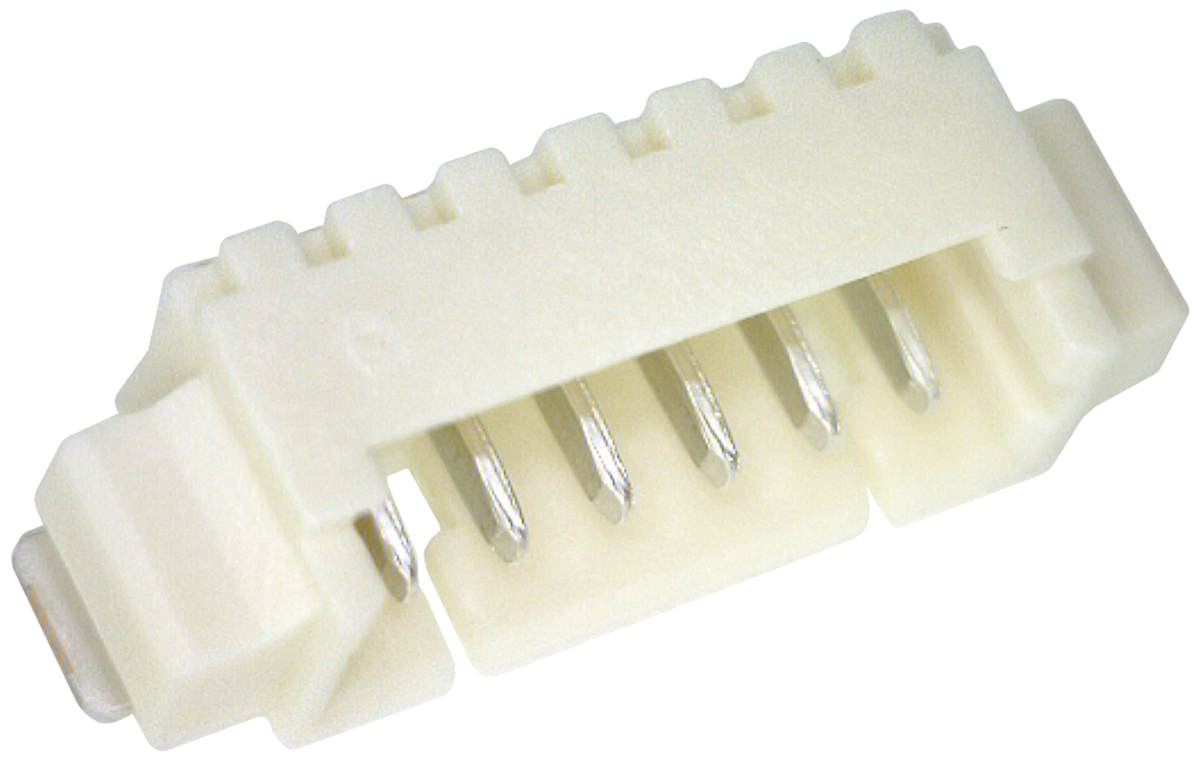

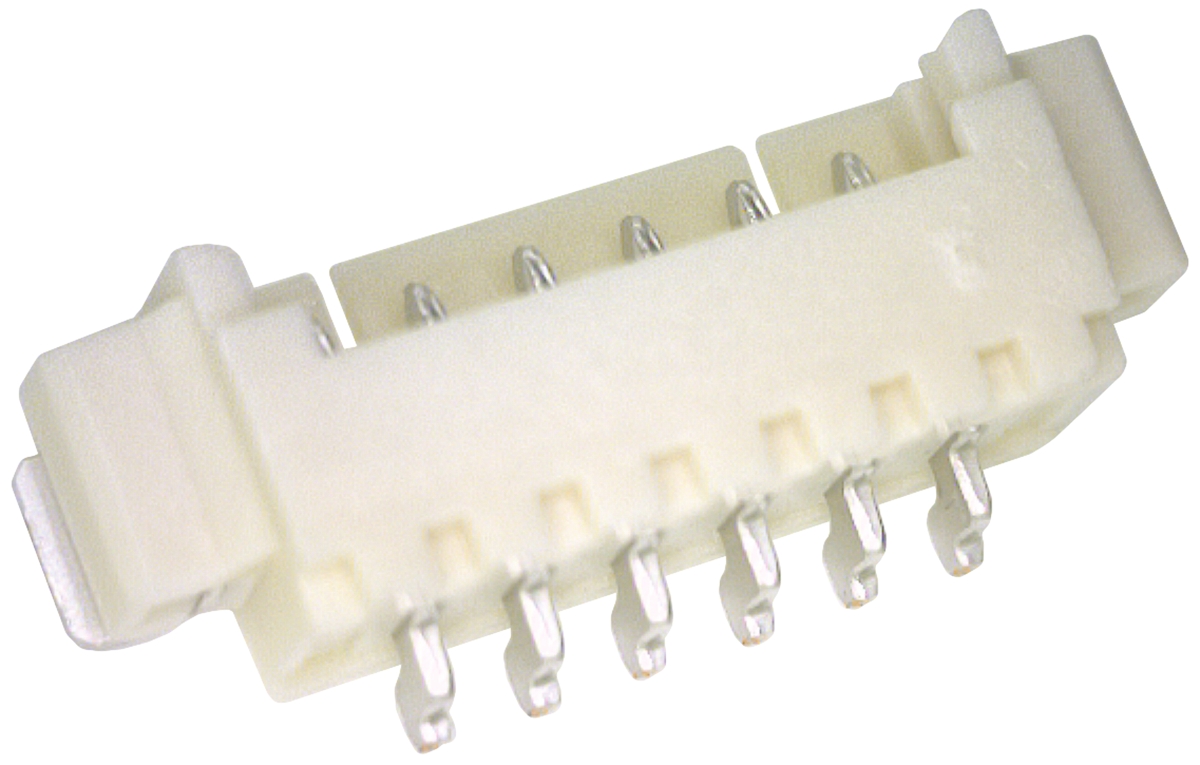

Molex 53261-0671, PICOBLADE Series, Series Number 53261, 1.25mm Pitch 6 Way 1 Row Shrouded Right Angle PCB Header, Surface Mount
Product Information
Featuring a right-angle configuration, the 53261-0671 by Molex is a highly reliable 6-position SMD header designed to ensure dependable connectivity in space-limited applications. This connector header is a robust SMD that offers optimal right-angle connectivity for 6 positions.
Shrouded/Unshrouded:
Shrouded
Number of Contacts:
6
Current Rating:
1.0A
Mounting Type:
Surface Mount
Voltage Rating:
125.0 V
Series:
PicoBlade
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
1
Contact Plating:
Tin
Pitch:
1.25mm
Contact Material:
Phosphor Bronze
Series Number:
53261
HTSUS:
8536.69.4040
Package:
Bulk
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 53261-0671 on website for other similar products.
We accept all major payment methods for all products including ET13968157. Please check your shopping cart at the time of order.
You can order Molex brand products with 53261-0671 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 53261-0671, PICOBLADE Series, Series Number 53261, 1.25mm Pitch 6 Way 1 Row Shrouded Right Angle PCB Header, Surface Mount. You can also check on our website or by contacting our customer support team for further order details on Molex 53261-0671, PICOBLADE Series, Series Number 53261, 1.25mm Pitch 6 Way 1 Row Shrouded Right Angle PCB Header, Surface Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13968157 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13968157.
Yes. We ship 53261-0671 Internationally to many countries around the world.
The Molex 53261-0671 is a connector header designed for surface mount applications. With a right-angle configuration and 6 positions, it offers a compact, reliable solution for connecting electronic components. The connector header is built to accommodate 0.049" (1.25mm) pitch applications, making it suitable for various industries and electronic devices. Its right-angle design, six-position configuration, and 0.049" pitch making it ideal for high-density applications.
Significant Benefits and Elements of Molex 53261-0671, PICOBLADE Series, Series Number 53261, 1.25mm Pitch 6 Way 1 Row:
The Molex 53261-0671 features a well-engineered design that ensures secure connections and efficient signal transmission. The right-angle configuration allows for flexible board layouts and space-saving installations. The connector header is constructed with high-quality materials to provide durability and withstand demanding environmental conditions.
This connector header is specifically designed for surface mount technology (SMT) applications, which enable direct placement onto the surface of the PCBs. The SMT design ensures a low-profile connection, saving space and facilitating automated assembly processes. It also offers improved electrical performance and reliability compared to through-hole connectors.
The Molex 53261-0671 connector header features a six-position configuration, allowing the connection of up to six conductors. This versatility makes it suitable for applications that require multiple connections, such as data communication, consumer electronics, and automotive systems. The header's compact size ensures efficient use of board real estate.
With a pitch of 0.049" (1.25mm), the Molex 53261-0671 connector header provides a reliable interface for smaller electronic components. It is compatible with various wire sizes and enables the transmission of signals and power in a compact form factor. The fine pitch allows for high-density PCB designs where space is critical.
Application Industries of Molex 53261-0671, PICOBLADE Series, Series Number 53261, 1.25mm Pitch 6 Way 1 Row:
The Molex 53261-0671 connector header finds applications in various industries, including telecommunications, computer and data storage, industrial automation, and medical equipment. It can be utilised for board-to-board, wire-to-board, and cable-to-board connections, offering flexibility and versatility in design and assembly.
