Molex MICRO-FIT 3.0 43045, 3mm Pitch, 20 Way, 2 Row, Straight PCB Header, Through Hole
Product Information
Shrouded/Unshrouded:
Shrouded
Number of Contacts:
20
Current Rating:
5.0A
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Series:
Micro-Fit 3.0
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
3.0mm
Contact Material:
Brass
Series Number:
43045
Manufacturer Standard Lead Time:
8 Weeks
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Through Hole 20 position 0.118" (3.00mm)
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
20

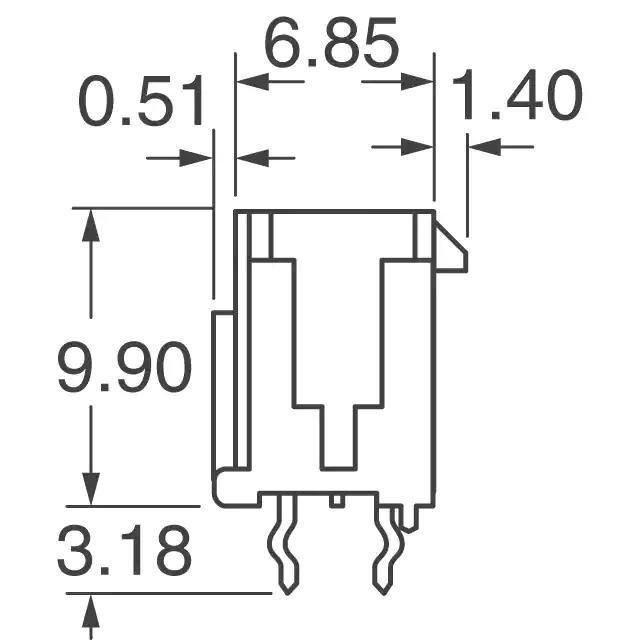

Contact Length - Post:
0.125" (3.18mm)
Insulation Height:
0.390" (9.91mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Voltage Rating:
600V
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Locking Ramp
Termination:
Kinked Pin, Solder
Current Rating (Amps):
8A
Pitch - Mating:
0.118" (3.00mm)
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Micro-Fit 3.0 43045
Packaging:
Tray
Contact Finish - Mating:
Gold
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Brass
Checking for live stock
FAQs
Yes. You can also search 43045-2013 on website for other similar products.
We accept all major payment methods for all products including ET13968023. Please check your shopping cart at the time of order.
You can order Molex brand products with 43045-2013 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex MICRO-FIT 3.0 43045, 3mm Pitch, 20 Way, 2 Row, Straight PCB Header, Through Hole. You can also check on our website or by contacting our customer support team for further order details on Molex MICRO-FIT 3.0 43045, 3mm Pitch, 20 Way, 2 Row, Straight PCB Header, Through Hole.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13968023 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13968023.
Yes. We ship 43045-2013 Internationally to many countries around the world.
This is MICRO-FIT 3.0 43045 3mm Pitch 20 Way 2 Row Straight PCB Header Through Hole manufactured by Molex. The manufacturer part number is 43045-2013. It is supplied as shrouded. The product contains 20 contacts. The product has a current rating of 5.0a. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. The product micro-fit 3.0, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 3.0mm. The product is made from sturdy brass materials. It carries [Serial Number] serial number. It has typical 8 weeks of manufacturer standard lead time. Additionally, the product is designed with board to cable/wire Style. It features connector header through hole 20 position 0.118" (3.00mm). Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 20. 0.125" (3.18mm) is the given possible contact length (post) values. 0.390" (9.91mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, medical, military, telecommunications. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. Moreover, the product has a nominal 600v voltage rating. It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features kinked pin, solder termination style. Additionally, the product's output is 8a. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide. The product micro-fit 3.0 43045, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has nice contact finishing of gold. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust liquid crystal polymer (lcp), glass filled insulation material.
