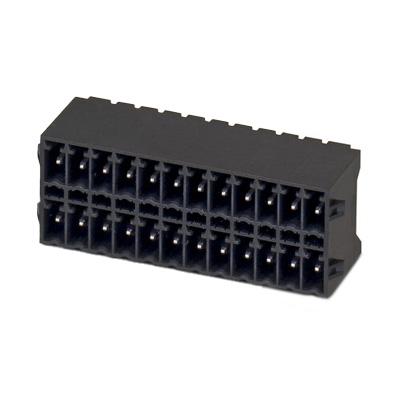

Phoenix Contact 1953305
Product Information
Current Rating:
8.0A
Voltage Rating:
250.0 V
Series:
MCDN 1.5/12-G1-3.5 RNP14THR
Termination Method:
Solder
Pluggable Terminal Block Type:
Header
Pitch:
3.5mm
Number of Contacts:
12
Contact Material:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
24
Contact Tail Length:
0.055" (1.40mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.598" (15.19mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A per Position
Wire Gauge or Range - AWG:
-
Voltage - UL:
150 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
Locking Ramp
Mounting Type:
Through Hole
Color:
Black
Series:
COMBICON MCDN
Positions Per Level:
12
Header Orientation:
90°, Right Angle
Current - UL:
8 A
Pitch:
0.138" (3.50mm)
Number of Levels:
2
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1953305 on website for other similar products.
We accept all major payment methods for all products including ET13265103. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1953305 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1953305. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1953305.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13265103 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13265103.
Yes. We ship 1953305 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1953305. The product has a current rating of 8.0a. Moreover, the product has a nominal 250.0 v voltage rating. The product mcdn 1.5/12-g1-3.5 rnp14thr, is a highly preferred choice for users. It allows solder termination method. Moreover, the product is 3.5mm. The product contains 12 contacts. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. Moreover, it has solder terminal style. The product also features robust liquid crystal polymer (lcp) housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 24. The typical tail length of the product is [Contact Tail Lenght]. 0.598" (15.19mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a per position. While 150 v is the typical voltage of the product. It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 250 v. The splendid features of the product include locking ramp. The product is available in through hole configuration. It has a classic black colour. The product combicon mcdn, is a highly preferred choice for users. It has 12 positions each level. The product has a 90°, right angle of a header orientation. The typical current includes 8 a. Moreover, the product is 0.138" (3.50mm). The product carries 2 levels. The product is designated with the ear99 code number.
