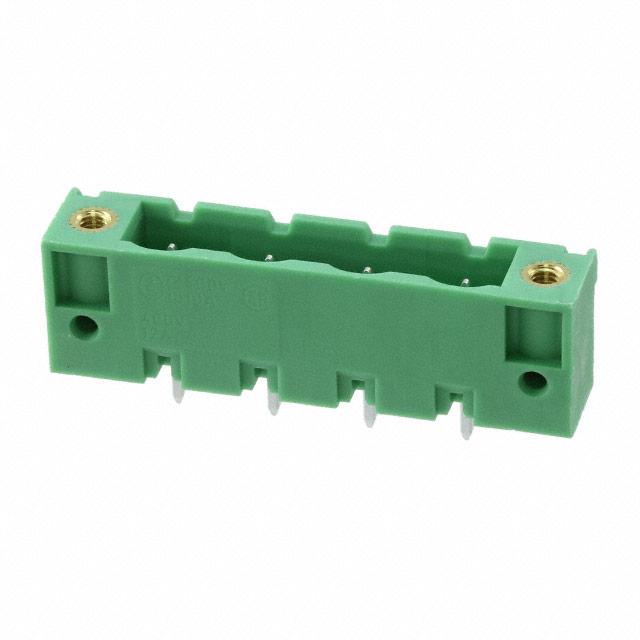

Phoenix Contact 1829170

1829170 Phoenix Contact
1829170
1829170
Phoenix Contact

Product Information

Current Rating:
12.0A
Mounting Type:
Through Hole
Voltage Rating:
630.0 V
Series:
GMSTBV 2.5/ 4-GF-7.62
Body Orientation:
Straight
Termination Method:
Solder
Pluggable Terminal Block Type:
Header
Number of Rows:
1
Pitch:
7.62mm
Number of Contacts:
4
Contact Material:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
4
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.472" (12.00mm)
REACH Status:
REACH Unaffected
edacadModel:
1829170 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2515043
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
0.154" (3.90mm)
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Mating and Mounting Flange
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON GMSTBV
Positions Per Level:
4
Header Orientation:
Vertical
Current - UL:
15 A
Wire Gauge or Range - AWG:
-
Pitch:
0.300" (7.62mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1829170. The product has a current rating of 12.0a. The product is available in through hole configuration. Moreover, the product has a nominal 630.0 v voltage rating. The product gmstbv 2.5/ 4-gf-7.62, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 7.62mm. The product contains 4 contacts. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust polyamide (pa), nylon housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 4. 0.472" (12.00mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. The typical tail length of the product is [Contact Tail Lenght]. While 300 v is the typical voltage of the product. It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include mating and mounting flange. It has a classic green colour. The product combicon gmstbv, is a highly preferred choice for users. It has 4 positions each level. The product has a vertical of a header orientation. The typical current includes 15 a. Moreover, the product is 0.300" (7.62mm). The product carries 1 levels. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Slot Removal 22/Mar/2013(PCN Design/Specification)
