Panel Mount Type:
Screw Mount - Front Flange
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Width:
3.346" (85.00mm)
Panel Thickness:
0.020 ~ 0.157" (0.5 ~ 4.0mm)
Package:
Bulk
Wire Gauge:
-
Front Panel Wire Connection:
Header, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Voltage - UL:
300 V
standardLeadTime:
6 Weeks
Features:
-
Color:
Green
Series:
COMBICON DFK-MSTB
Positions Per Level:
13
Current - UL:
10 A
Pitch:
0.197" (5.00mm)
Rear Panel Wire Connection:
Quick Connect - 0.110" (2.80mm), Solder Eyelet
ECCN:
EAR99
Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
9.3mm
Number of Contacts:
13
Minimum Operating Temperature:
-40°C
Housing Material:
Polyamide
Series:
DFK-MSTB
Contact Material:
Copper Alloy
Row Pitch:
5mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
UL 94 V0, RoHS, ISO 6988:1985-02, IEC 60664-1:2007-04, IEC 60512-3-1:2002-02, IEC 60512-15-1:2008-05, IEC 60512-13-5:2006-02, IEC 60512-1-2:2002-02, IEC 60512-1-1:2002-02, IEC 60068-2-70:1995-12, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2
Voltage:
32 V
Termination Type:
Solder
Pitch:
5mm
Mating Pin Length:
9.3mm

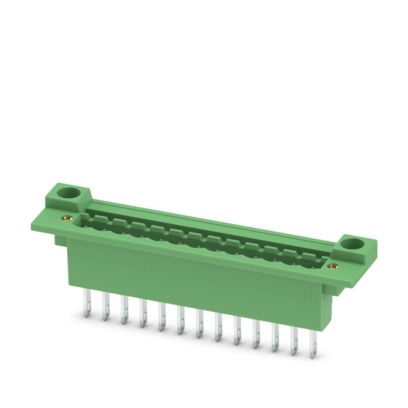

Product Type:
Pluggable Terminal Block
Maximum Operating Temperature:
100°C
Mount Type:
Threaded
