Panel Mount Type:
Screw Mount - Front Flange
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Width:
3.600" (91.44mm)
Panel Thickness:
0.020 ~ 0.157" (0.5 ~ 4.0mm)
Manufacturer:
Phoenix Contact
Wire Gauge:
-
Front Panel Wire Connection:
Header, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - UL:
300 V
standardLeadTime:
6 Weeks
Number of Levels:
1
Features:
Lock Opening
Color:
Green
Series:
COMBICON DFK-MSTB
Positions Per Level:
14
Packaging:
Bulk
Current - UL:
15 A
Pitch:
0.200" (5.08mm)
Rear Panel Wire Connection:
Quick Connect - 0.110" (2.80mm), Solder Eyelet
ECCN:
EAR99
Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
9.3mm
Number of Contacts:
14
Termination Type:
Solder
Housing Material:
Polyamide
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
5.08mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
UL 94 V0, IEC 61984, IEC 60664-1, IEC 60512-5-1, IEC 60512-3-1, IEC 60512-15-1, IEC 60512-13-5, IEC 60512-1-2, IEC 60512-1-1, IEC 60112, IEC 60068-2-82, IEC 60068-2-70, EN ISO 22479, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2, cULus Recognised Approval ID:E60425-19931011, CSA ID:13631, VDE ID:40050648, JEDEC JESD 201
Voltage:
32 V
Contact Plating:
Tin Plated
Pitch:
5.08mm
Mating Pin Length:
9.3mm

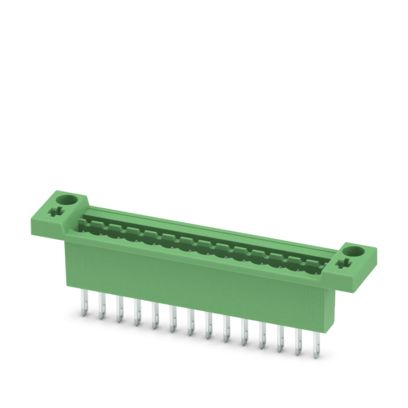

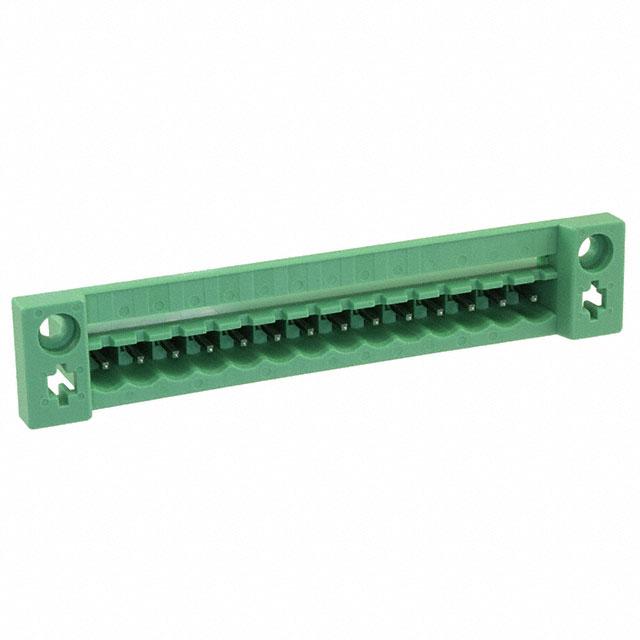

Product Type:
Pluggable Terminal Block
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Feed Through
