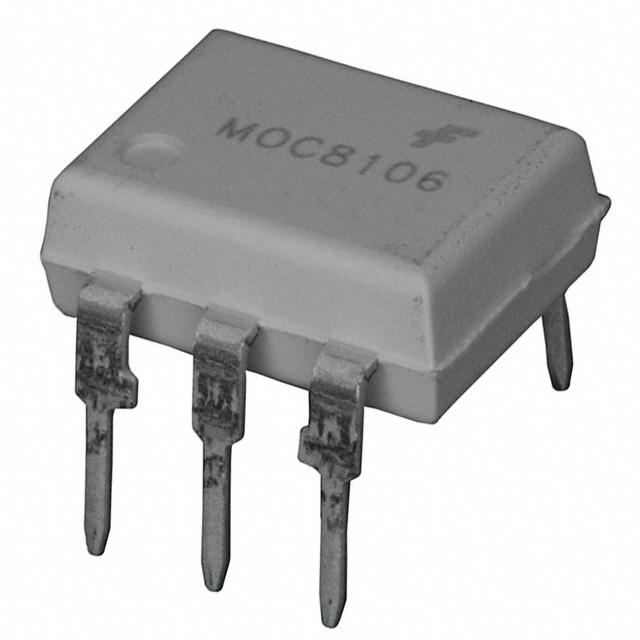

onsemi MOC8106M

MOC8106M onsemi
MOC8106M
onsemi

Product Information

HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
50mA
Vce Saturation (Max):
400mV
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:
6-DIP (0.300", 7.62mm)
Current - DC Forward (If) (Max):
60 mA
Current Transfer Ratio (Min):
50% @ 10mA
Current Transfer Ratio (Max):
150% @ 10mA
Rise / Fall Time (Typ):
4µs, 3.5µs (Max)
REACH Status:
REACH Unaffected
Output Type:
Transistor
Number of Channels:
1
Voltage - Output (Max):
70V
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Voltage - Forward (Vf) (Typ):
1.15V
standardLeadTime:
14 Weeks
Voltage - Isolation:
4170Vrms
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
6-DIP
Turn On / Turn Off Time (Typ):
2µs, 3µs
Base Product Number:
MOC8106
ECCN:
EAR99
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is MOC8106M. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 50ma output or channel current. Feature a maximum Vce saturation of 400mv. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-dip (0.300", 7.62mm). The maximum DC forward current of the product is 60 ma. It has a minimum current transfer ratio of 50% @ 10ma. Excellent efficiency with a maximum current transfer ratio of 150% @ 10ma. The typical rise and fall time of the product is 4µs, 3.5µs (max). In addition, it is reach unaffected. Furthermore, it has atransistor output. It is supplied with 1 channels. While the maximum output voltage is 70v. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. The typical forward voltage (Vf) of the product is 1.15v. It has a long 14 weeks standard lead time. 4170vrms of isolation voltage. The product is available in through hole configuration. 6-dip is the supplier device package value. The product has a typical turn On and Off time of 2µs, 3µs. Moreover, it corresponds to moc8106, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
pdf icon
Mult DEV Mold/Die/Mat 18/Dec/2023(PCN Assembly/Origin)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
CNY17(F)1-4M, MOC8106,07M(Datasheets)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
