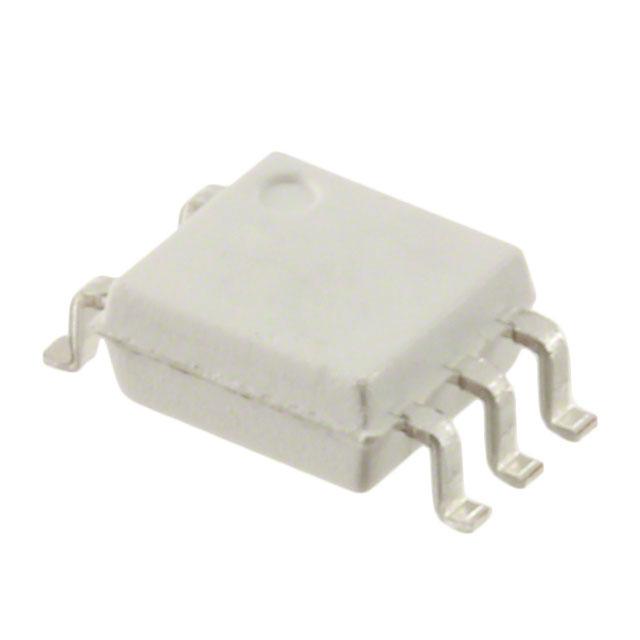

onsemi, FODM8061R2 DC Input Schottky-Clamped Transistor Output Optocoupler, Surface Mount, 5-Pin Mini-Flat
Product Information
Maximum Forward Voltage:
1.8V
Output Device:
Schottky-Clamped Transistor
Isolation Voltage:
3.75 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
20ns
Input Current Type:
DC
Number of Pins:
5
Number of Channels:
1
Package Type:
Mini-Flat
Special Features:
High Noise Immunity Characterized by Common mode Transient Immunity, Microprocessor System Interface, Voltage Level Translator
Maximum Input Current:
50 mA
Logic Output:
Yes
Typical Fall Time:
10ns
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
50 mA
Propagation Delay tpLH / tpHL (Max):
80ns, 80ns
Operating Temperature:
-40°C ~ 110°C
Input Type:
DC
Package / Case:
6-SOIC (0.173", 4.40mm Width), 5 Leads
Rise / Fall Time (Typ):
20ns, 10ns
REACH Status:
REACH Unaffected
Output Type:
Open Collector, Schottky Clamped
edacadModel:
FODM8061R2 Models
Current - DC Forward (If) (Max):
50mA
Number of Channels:
1
Data Rate:
10Mbps
edacadModelUrl:
/en/models/2507055
Inputs - Side 1/Side 2:
1/0
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
20kV/µs
Voltage - Forward (Vf) (Typ):
1.45V
standardLeadTime:
14 Weeks
Voltage - Isolation:
3750Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
5-Mini-Flat
Voltage - Supply:
3V ~ 5.5V
Base Product Number:
FODM8061
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FODM8061R2 on website for other similar products.
We accept all major payment methods for all products including ET21470985. Please check your shopping cart at the time of order.
You can order onsemi brand products with FODM8061R2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi, FODM8061R2 DC Input Schottky-Clamped Transistor Output Optocoupler, Surface Mount, 5-Pin Mini-Flat. You can also check on our website or by contacting our customer support team for further order details on onsemi, FODM8061R2 DC Input Schottky-Clamped Transistor Output Optocoupler, Surface Mount, 5-Pin Mini-Flat.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21470985 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21470985.
Yes. We ship FODM8061R2 Internationally to many countries around the world.
This is DC Input Schottky-Clamped Transistor Output Optocoupler Surface Mount 5-Pin Mini-Flat manufactured by onsemi. The manufacturer part number is FODM8061R2. It also carries 1.8v of maximum forward voltage. Its output device includes schottky-clamped transistor. It has 3.75 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 20ns rise time . Its input is of dc type . It is comprised of 5 pins. It is supplied with 1 channels. The package is a sort of mini-flat. The product also provides special features, such as high noise immunity characterized by common mode transient immunity, microprocessor system interface, voltage level translator. While its maximum input current includes 50 ma. It includes a logic output yes . It has a typical 10ns fall time . It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 50 ma output or channel current. It has a maximum propagation delay of 80ns, 80ns. The product has -40°c ~ 110°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-soic (0.173", 4.40mm width), 5 leads. The typical rise and fall time of the product is 20ns, 10ns. In addition, it is reach unaffected. Furthermore, it has aopen collector, schottky clamped output. The maximum DC forward current of the product is 50ma. It has a maximised data speed rate of 10mbps. The typical 1/0 inputs of both sides (side 1/side 2). It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). Allows a 20kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.45v. It has a long 14 weeks standard lead time. 3750vrms of isolation voltage. 5-mini-flat is the supplier device package value. It has optimum voltage supply of 3v ~ 5.5v. Moreover, it corresponds to fodm8061, a base product number of the product. The product is designated with the ear99 code number.
