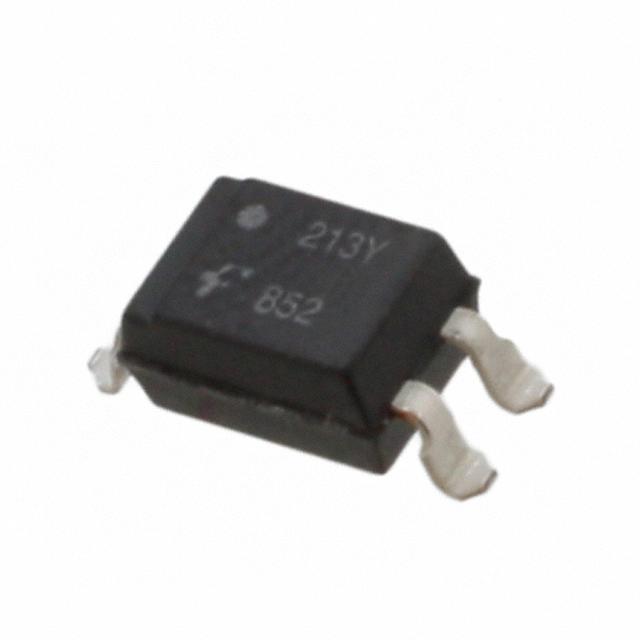

onsemi, FOD852S DC Input Darlington Output Optocoupler, Surface Mount, 4-Pin MDIP
Product Information
Maximum Forward Voltage:
1.4V
Output Device:
Darlington
Isolation Voltage:
5 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
300µs
Maximum Current Transfer Ratio:
15000%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
MDIP
Maximum Input Current:
50 mA
Typical Fall Time:
100µs
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
150mA
Vce Saturation (Max):
1.2V
Operating Temperature:
-30°C ~ 100°C
Input Type:
DC
Package / Case:
4-SMD, Gull Wing
edacadModel:
FOD852S Models
Current Transfer Ratio (Min):
1000% @ 1mA
Current Transfer Ratio (Max):
15000% @ 1mA
Rise / Fall Time (Typ):
100µs, 20µs
REACH Status:
REACH Unaffected
Output Type:
Darlington
Current - DC Forward (If) (Max):
50 mA
Number of Channels:
1
edacadModelUrl:
/en/models/1054016
Voltage - Output (Max):
300V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Forward (Vf) (Typ):
1.2V
standardLeadTime:
17 Weeks
Voltage - Isolation:
5000Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
4-SMD
Turn On / Turn Off Time (Typ):
-
Base Product Number:
FOD852
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FOD852S on website for other similar products.
We accept all major payment methods for all products including ET21470434. Please check your shopping cart at the time of order.
You can order onsemi brand products with FOD852S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi, FOD852S DC Input Darlington Output Optocoupler, Surface Mount, 4-Pin MDIP. You can also check on our website or by contacting our customer support team for further order details on onsemi, FOD852S DC Input Darlington Output Optocoupler, Surface Mount, 4-Pin MDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21470434 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21470434.
Yes. We ship FOD852S Internationally to many countries around the world.
This is DC Input Darlington Output Optocoupler Surface Mount 4-Pin MDIP manufactured by onsemi. The manufacturer part number is FOD852S. It also carries 1.4v of maximum forward voltage. Its output device includes darlington. It has 5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 300µs rise time . It has a maximum 15000% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of mdip. While its maximum input current includes 50 ma. It has a typical 100µs fall time . It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 150ma output or channel current. Feature a maximum Vce saturation of 1.2v. The product has -30°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 4-smd, gull wing. It has a minimum current transfer ratio of 1000% @ 1ma. Excellent efficiency with a maximum current transfer ratio of 15000% @ 1ma. The typical rise and fall time of the product is 100µs, 20µs. In addition, it is reach unaffected. Furthermore, it has adarlington output. The maximum DC forward current of the product is 50 ma. While the maximum output voltage is 300v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.2v. It has a long 17 weeks standard lead time. 5000vrms of isolation voltage. 4-smd is the supplier device package value. Moreover, it corresponds to fod852, a base product number of the product. The product is designated with the ear99 code number.
