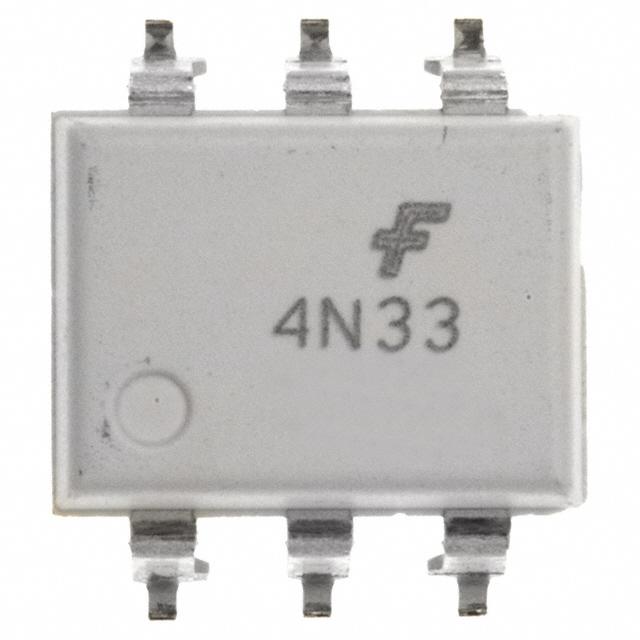

onsemi, 4N33SR2M Darlington Output Optocoupler, Surface Mount, 6-Pin DIP
Product Information
Maximum Forward Voltage:
1.5V
Output Device:
Darlington
Isolation Voltage:
1.5 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
5µs
Maximum Current Transfer Ratio:
500%
Number of Pins:
6
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
3 A
Logic Output:
Yes
Typical Fall Time:
100µs
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
150mA
Vce Saturation (Max):
1V
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:
6-SMD, Gull Wing
edacadModel:
4N33SR2M Models
Current Transfer Ratio (Min):
500% @ 10mA
Current Transfer Ratio (Max):
-
Rise / Fall Time (Typ):
-
REACH Status:
REACH Unaffected
Output Type:
Darlington with Base
Current - DC Forward (If) (Max):
80 mA
Number of Channels:
1
edacadModelUrl:
/en/models/1922965
Voltage - Output (Max):
30V
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Forward (Vf) (Typ):
1.2V
standardLeadTime:
6 Weeks
Voltage - Isolation:
4170Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-SMD
Turn On / Turn Off Time (Typ):
5µs, 100µs (Max)
Base Product Number:
4N33
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 4N33SR2M on website for other similar products.
We accept all major payment methods for all products including ET21470287. Please check your shopping cart at the time of order.
You can order onsemi brand products with 4N33SR2M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi, 4N33SR2M Darlington Output Optocoupler, Surface Mount, 6-Pin DIP. You can also check on our website or by contacting our customer support team for further order details on onsemi, 4N33SR2M Darlington Output Optocoupler, Surface Mount, 6-Pin DIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21470287 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21470287.
Yes. We ship 4N33SR2M Internationally to many countries around the world.
This is Darlington Output Optocoupler Surface Mount 6-Pin DIP manufactured by onsemi. The manufacturer part number is 4N33SR2M. It also carries 1.5v of maximum forward voltage. Its output device includes darlington. It has 1.5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 5µs rise time . It has a maximum 500% current transfer ratio . It is comprised of 6 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes 3 a. It includes a logic output yes . It has a typical 100µs fall time . It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 150ma output or channel current. Feature a maximum Vce saturation of 1v. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-smd, gull wing. It has a minimum current transfer ratio of 500% @ 10ma. In addition, it is reach unaffected. Furthermore, it has adarlington with base output. The maximum DC forward current of the product is 80 ma. While the maximum output voltage is 30v. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.2v. It has a long 6 weeks standard lead time. 4170vrms of isolation voltage. 6-smd is the supplier device package value. The product has a typical turn On and Off time of 5µs, 100µs (max). Moreover, it corresponds to 4n33, a base product number of the product. The product is designated with the ear99 code number.
