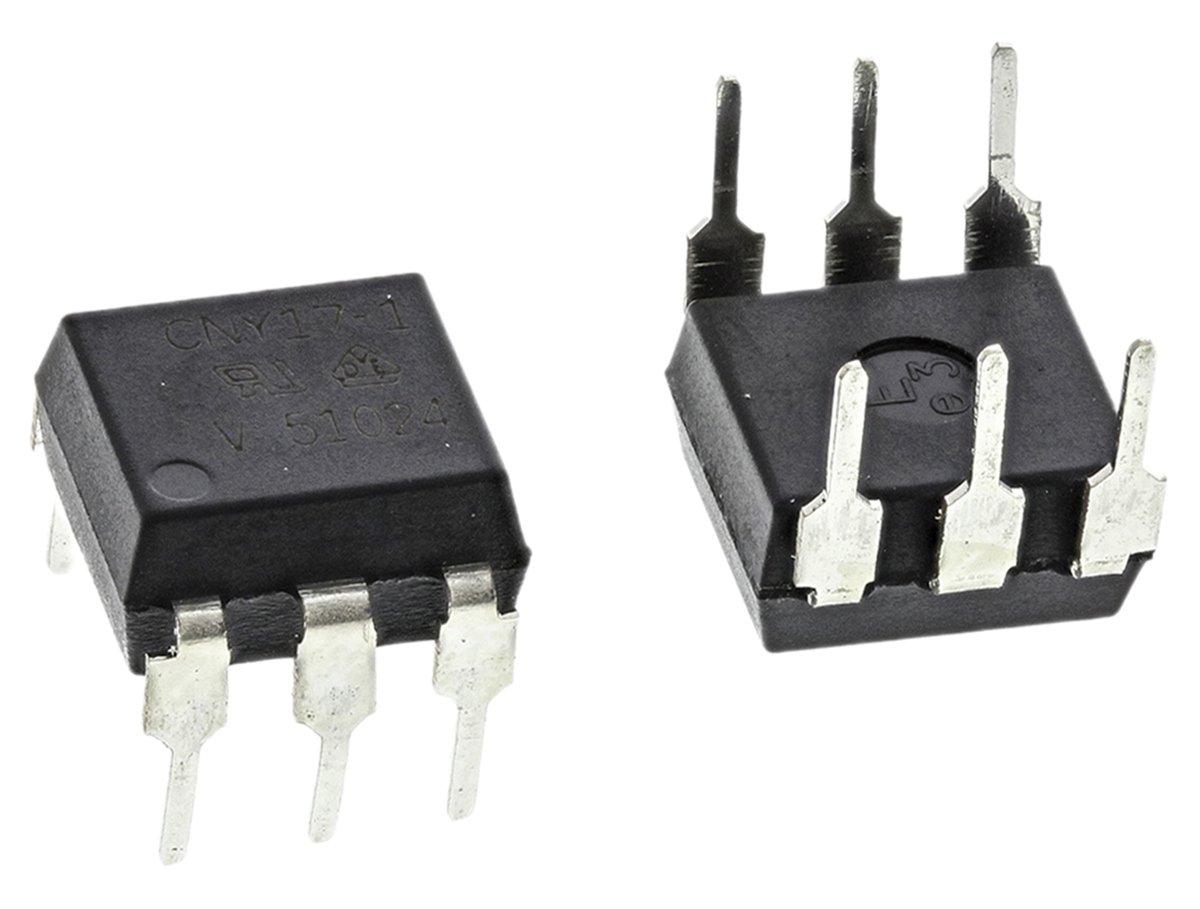

Vishay CNY17-1 DC Input Transistor Output Optocoupler, Through Hole, 6-Pin PDIP

  • Enrgtech Part No: ET16889333
  • |
  • Manufacturer Part No:

    CNY17-1

  • |
  • Manufacturer: Vishay
CNY17-1 Vishay DC Input Transistor Output Optocoupler, Through Hole, 6-Pin PDIP
CNY17-1 Vishay DC Input Transistor Output Optocoupler, Through Hole, 6-Pin PDIP
Vishay

Product Information

Maximum Forward Voltage:
1.65V
Output Device:
Transistor
Isolation Voltage:
5.3 kVrms
Mounting Type:
Through Hole
Series:
CNY
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
40%
Maximum Current Transfer Ratio:
80%
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
PDIP
Maximum Input Current:
60 mA
Typical Fall Time:
11µs
RoHs Compliant
Checking for live stock

The Vishay CNY17-1 is a versatile optocoupler featuring a gallium arsenide infrared (IR) emitting diode optically coupled to a silicon planar phototransistor detector. This through-hole electronic component provides excellent galvanic isolation between input and output circuits, protecting sensitive low-voltage microcontrollers from high-voltage surges. Encapsulated in a robust 6-pin plastic dual-in-line package, the CNY17-1 is renowned for its high stability and reliable switching performance, making it a staple in power management and signal processing applications across various industries.

What Makes the Product Standout?

The Vishay CNY17-1 optocoupler offers exceptional isolation voltage and long-term signal stability, ensuring safe operation in complex power electronic systems.

  • Electrical Safety: Provides 5000 Vrms of isolation to protect users and equipment from transients.
  • Efficient Transfer: Features a specific Current Transfer Ratio (CTR) range for predictable circuit design.
  • Standard Footprint: The DIP-6 package integrates easily into existing PCB layouts and breadboard prototypes.

Key Features & Suitable Environments

  • Special Features
  • High Isolation Voltage: 5000 Vrms, ensuring robust circuit separation.
  • Fast Response Time: Capable of high-speed switching for efficient data and signal pulse transmission.
  • Base Connection Pin: Includes a base terminal for external adjustment and increased switching control.
  • Low Coupling Capacitance: Minimises noise interference between the input and output stages.
  • Typical Applications
  • Switch Mode Power Supplies (SMPS): Used for feedback loops to maintain voltage regulation.
  • Industrial Controls: Isolates logic circuits from heavy-duty AC/DC motors and actuators.
  • Telecommunications: Provides line-to-logic interface protection in networking hardware and modems.
