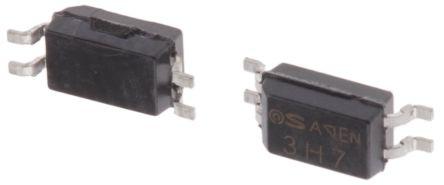

Sharp PC3H7AJ0000F DC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat

PC3H7AJ0000F Sharp  DC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat
Sharp

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
2.5 kV ac
Mounting Type:
Surface Mount
Typical Rise Time:
4µs
Minimum Current Transfer Ratio:
20 %
Maximum Current Transfer Ratio:
400%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
Mini-Flat
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Optocoupler Surface Mount 4-Pin Mini-Flat manufactured by Sharp. The manufacturer part number is PC3H7AJ0000F. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 2.5 kv ac isolation voltage. The product is available in surface mount configuration. It has a typical 4µs rise time . In addition, it has a minimum 20 % current transfer ratio . It has a maximum 400% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of mini-flat. While its maximum input current includes 50 ma. It has a typical 3µs fall time .
