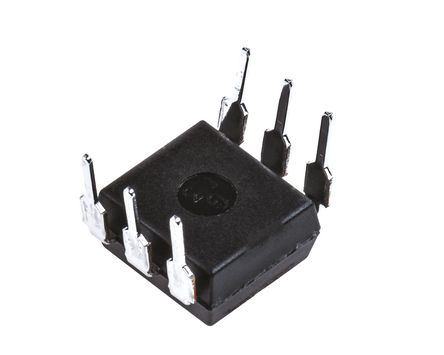

Vishay H11AA1, AC Input Transistor Output Optocoupler, Through Hole, 6-Pin DIP

Enrgtech Part No: ET13884881
|
Manufacturer Part No:
H11AA1
|
Manufacturer: Vishay

H11AA1 Vishay , AC Input Transistor Output Optocoupler, Through Hole, 6-Pin DIP

Product Information

Maximum Forward Voltage:

1.5V

Output Device:

Transistor

Isolation Voltage:

5.3 kVrms

Mounting Type:

Through Hole

Series:

H11A

Input Current Type:

Number of Pins:

Number of Channels:

Package Type:

DIP

Maximum Input Current:

60 mA

Checking for live stock

The Vishay H11AA1 is a specialised optocoupler device that ensures safe signal transfer between two isolated circuits using light transmission. This particular model comes with an AC input and a transistor output, encapsulated in a classic 6-pin DIP (Dual In-line Package) for through-hole mounting.

Designed to maintain precise electrical isolation between its input and output, the H11AA1 optocoupler is a perfect choice for applications requiring protection against high voltage spikes and surges. The AC input capability allows it to directly interface with alternating current signals, which is a common requirement in industrial settings.

Versatile and Robust Communication

The 6-pin DIP configuration makes the H11AA1 a versatile component for printed circuit board (PCB) applications, where reliable communication between different circuit sections is essential without the risk of electrical interference.

The Vishay H11AA1, AC Input Transistor Output Optocoupler, Through Hole, 6-Pin DIP: Distinctive Features and Benefits

Directly compatible with AC signal circuits without additional components.
Provides a stable and reliable output signal.
Protects sensitive electronic equipment from voltage transients.
Ensures compatibility with standard PCB layouts and easy soldering.

Typical Applications of the Optocoupler in Electronic Design

By integrating the Vishay H11AA1 into electronic systems, designers can achieve a high level of protection for sensitive circuitry, ensuring long-term reliability and safety in both industrial and consumer applications, including:

Power Supply Units: Offers isolation to stabilise feedback control loops.
Industrial Control Systems: Protects microcontrollers from high-voltage industrial environments.
Telecommunications: Isolates sensitive communication circuitry from potential electrical noise.
Consumer Electronics: Ensures safety and reliability in devices requiring AC line monitoring.

H11AA1, Optocoupler, Phototransistor Output, AC Input, with Base Connection(Technical Reference)
