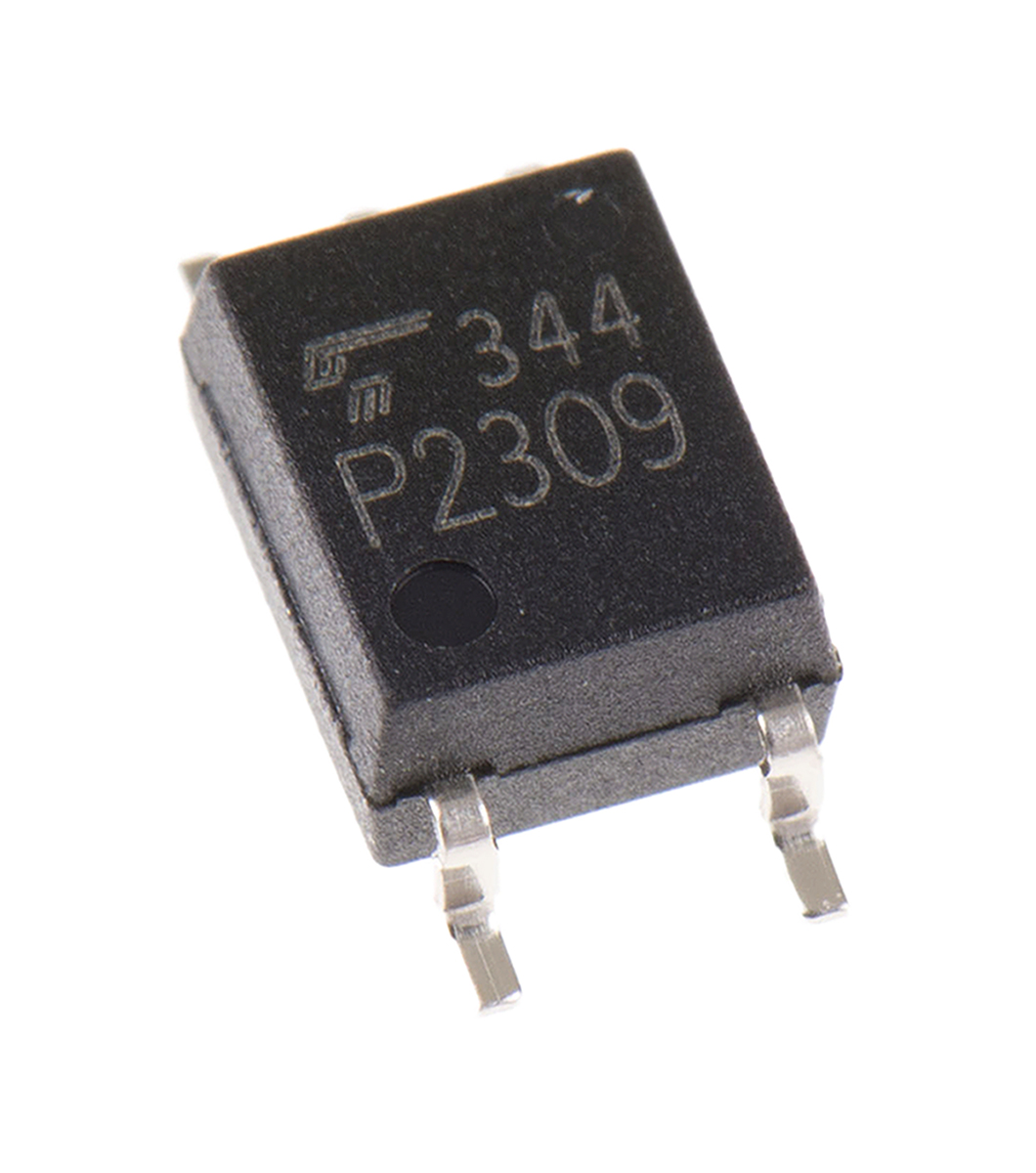

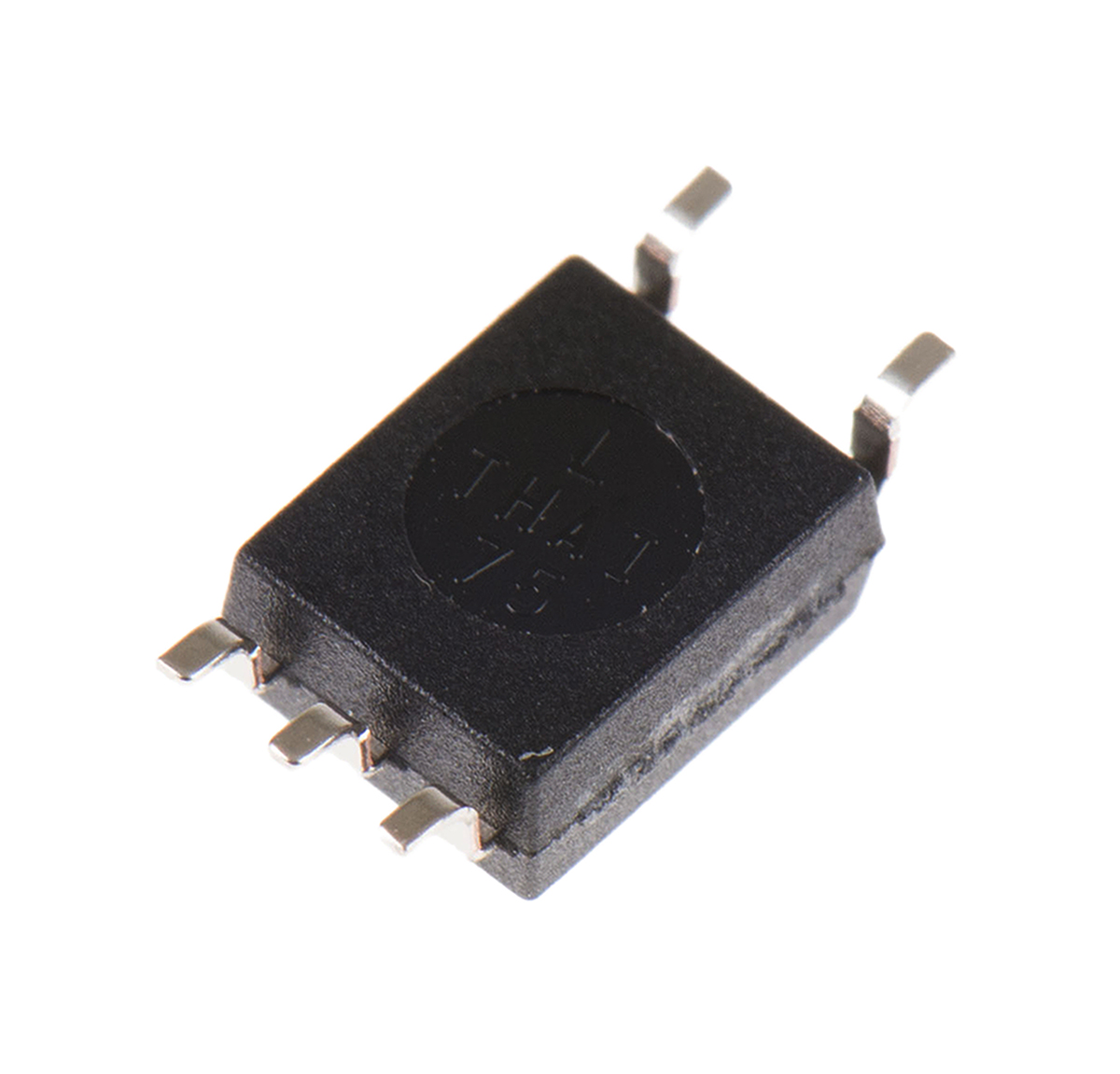

Toshiba TLP2309 AC Input Transistor Output Optocoupler, Surface Mount, 5-Pin SOIC

Enrgtech Part No: ET13797657
|
Manufacturer Part No:
TLP2309
|
Manufacturer: Toshiba

TLP2309 Toshiba AC Input Transistor Output Optocoupler, Surface Mount, 5-Pin SOIC

Product Information

Maximum Forward Voltage:

1.7V

Output Device:

Transistor

Isolation Voltage:

3.75 kVrms

Mounting Type:

Surface Mount

Series:

TLP

Maximum Current Transfer Ratio:

15%

Input Current Type:

Package Type:

SOIC

Number of Channels:

Number of Pins:

Maximum Input Current:

20 mA

Logic Output:

Yes

Checking for live stock

This is AC Input Transistor Output Optocoupler Surface Mount 5-Pin SOIC manufactured by Toshiba. The manufacturer part number is TLP2309. It also carries 1.7v of maximum forward voltage. Its output device includes transistor. It has 3.75 kvrms isolation voltage. The product is available in surface mount configuration. The product tlp, is a highly preferred choice for users. It has a maximum 15% current transfer ratio . Its input is of ac type . The package is a sort of soic. It is supplied with 1 channels. It is comprised of 5 pins. While its maximum input current includes 20 ma. It includes a logic output yes .

TLP2309, Photocoupler, GaAlAs Infrared LED & Photo IC Data Sheet(Technical Reference)

Photocouplers and Photorelays(Technical Reference)
