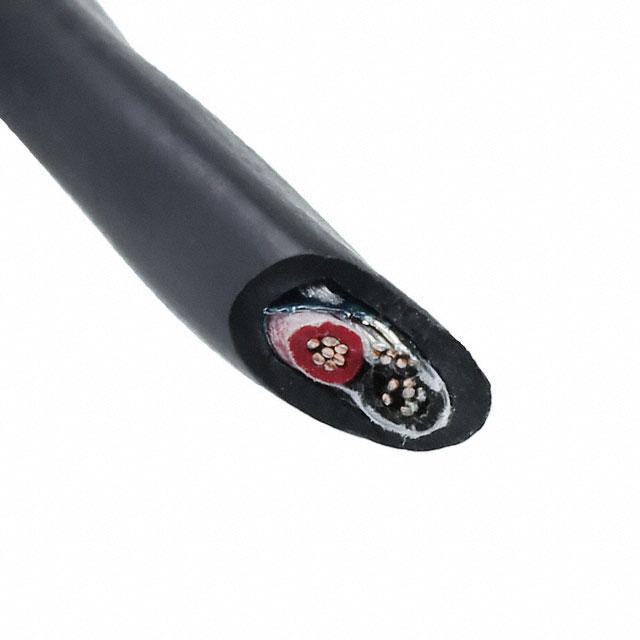

Alpha Wire M14328 BK001
Product Information
American Wire Gauge:
24 AWG
Minimum Operating Temperature:
-20°C
Voltage Rating:
300 V
Series:
M14328
Shield Type:
Foil
Core Strands:
7/32 AWG
Sheath Colour:
Black
Length:
305m
Screened/Unscreened:
Unscreened
Cross Sectional Area:
0.25 mm²
Outer Sheath Material:
PVC
Shielded/Unshielded:
Unshielded
Number of Cores:
2
Characteristic Impedance:
61 Ω
Outer Diameter:
3.38mm
Maximum Operating Temperature:
+75°C
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/32
Operating Temperature:
-20°C ~ 75°C
Usage:
-
Number of Conductors:
2
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
24 AWG
Shield Type:
Foil
Jacket (Insulation) Thickness:
0.0200" (0.508mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1000.0' (304.8m)
Conductor Insulation:
Polypropylene (PP)
standardLeadTime:
7 Weeks
Shield Coverage:
100%
Features:
Drain Wire
Jacket (Insulation) Diameter:
0.124" (3.15mm)
Conductor Material:
Copper, Tinned
Series:
-
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum
ECCN:
EAR99
Base Product Number:
M14328
Jacket Color:
Black
Checking for live stock
FAQs
Yes. You can also search M14328 BK001 on website for other similar products.
We accept all major payment methods for all products including ET10790252. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with M14328 BK001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire M14328 BK001. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire M14328 BK001.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10790252 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10790252.
Yes. We ship M14328 BK001 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is M14328 BK001. Features 24 awg - American Wire Gauge. Whereas, the minimum operating temperature of the product is -20°c. Moreover, the product has a nominal 300 v voltage rating. The product m14328, is a highly preferred choice for users. The item is shielded with a foil. The core strands are 7/32 awg. The sheath has an adorable black colour. Its accurate length is 305m. Screen Options - unscreened. The product has 0.25 mm² cross section area. Whereas the outer sheath is manufactured from pvc material. Moreover, the product is unshielded . The product consists of 2 cores. The typical characteristic impedance includes 61 ω. Its outer diameter is 3.38mm. It has a maximum operating temperature of +75°c. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/32 conductor strand. The product has -20°c ~ 75°c operating temperature range. It features 2 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 24 awg. Furthermore, the insulated jacket is a 0.0200" (0.508mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1000.0' (304.8m). The conductor offers excellent insulation due to polypropylene (pp) materials. It has a long 7 weeks standard lead time. It covers shielding capability up to 100%. The splendid features of the product include drain wire. The diameter of the jacket is 0.124" (3.15mm). The conductor is made from copper, tinned material. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to m14328, a base product number of the product. It comes in nice black colour.
