Name: WC-110, JST
Brand: JST
SKU: ET13856235
Price: 405.72 GBP
Availability: InStock

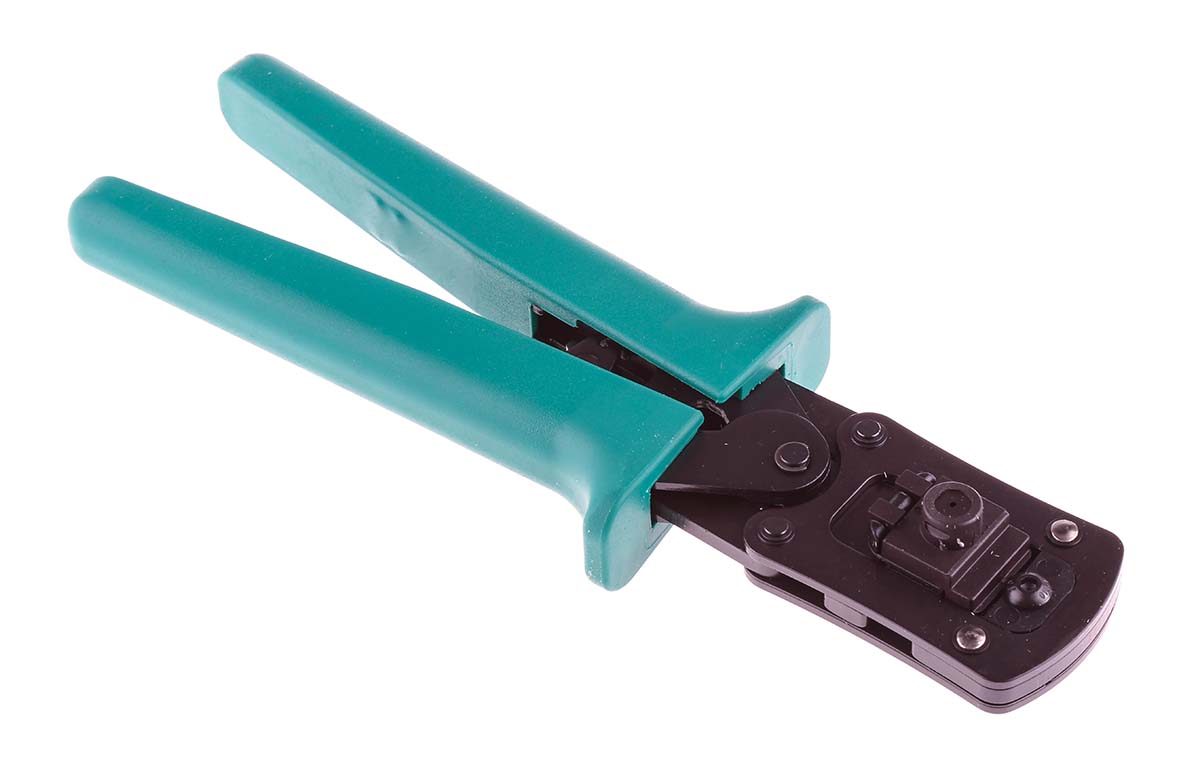

The JST WC-110 is a hand-operated, ratcheting crimping tool designed specifically for precision crimping of loose-piece rectangular contacts (such as SXH-series terminals) in wire harness and connector assembly processes. Rated for wire sizes from 22 AWG to 28 AWG, it features a precision-ground die set, ergonomic soft-grip handles, and a built-in locator and wire stop mechanism for repeatable, reliable performance in high-volume or production environments.

Crucial Features and Benefits of Choosing the JST Crimping Tool

Wire gauge range from 22 AWG down to 28 AWG, matching typical connector contacts.
Ratcheting mechanism ensures full crimp cycle completion and prevents partial crimps.

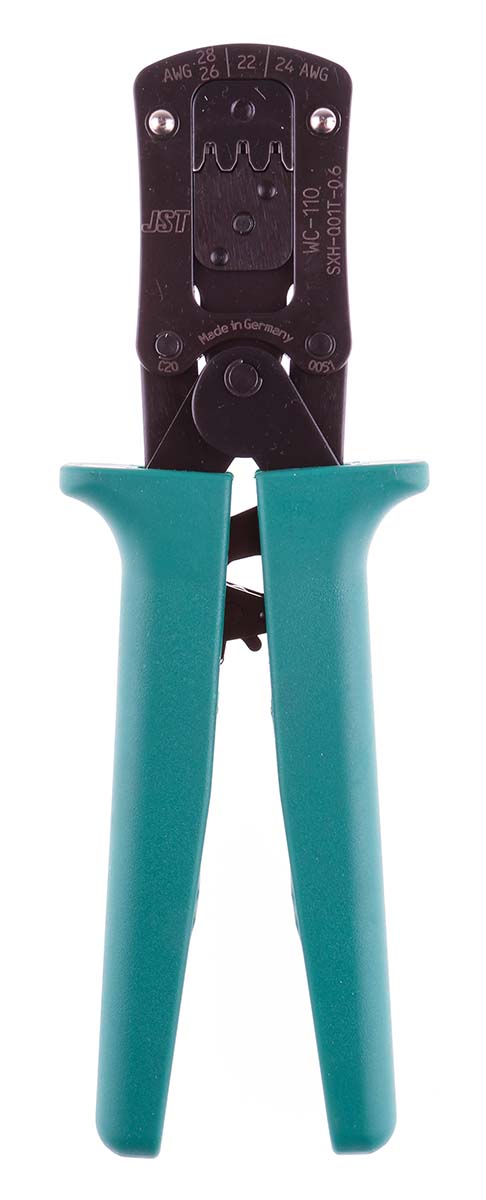

Precision die assembly with three cavities (22 AWG, 24 AWG, 26/28 AWG) for accurate crimp profiles.
Locator flap and wire-stop improve repeatability and minimise mis-positioning of terminals.
Ergonomic soft-grip handles for comfortable operation over frequent use cycles.
Compatible with JST XH/SXH loose-piece crimp terminals widely used in wire-harness assemblies.

Engineered for Accurate and Reliable Harness Assembly

The WC-110 delivers consistent quality by combining mechanical precision with ergonomic design. With clear demarcation for three wire sizes and an embedded wire stop, operators can achieve repeatable results with minimal adjustments or guesswork. This tool supports efficient production workflows without sacrificing connectivity quality or reliability.

Field Applications of the Product

Crimping loose-piece rectangular contacts in 22-28 AWG wires.
Harness assembly for consumer, automotive, industrial or telecom equipment.
Termination of JST XH/SXH series contacts (e.g., SXH-001T-P0.6).
Lab or production tool in electronics manufacturing or wiring harness production.
Maintenance or field-service tool.
