Manufacturer :	Eaton
Manufacturer Part No :	283189 \| PKZM0-XRM32
Enrgtech Part No :	ET20155455
Product Range :	PolySwitch RXEF Series

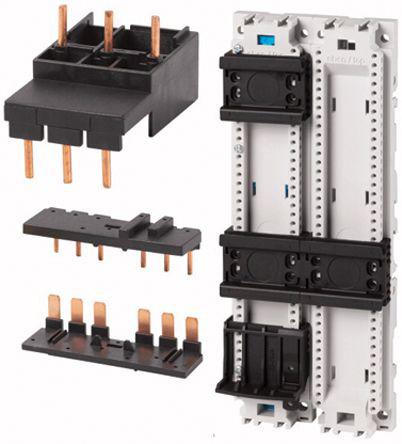

Eaton Wiring Set for use with PKZM0 + DILM17, PKZM0 + DILM25, PKZM0 + DILM32

Plug-In Connection System A simple clip together assembly system, used to configure a PKZM Motor Protective Circuit Breaker and xStart contactor to form either a DOL or Reversing motor starter. No additional wiring between the components is required, which speeds up assembly and prevents wiring errors. The use of this system for Motor Starters up to 5.5kW allows mounting on a single DIN rail.

Product Information

For Use With	:	PKZM0 + DILM17, PKZM0 + DILM25, PKZM0 + DILM32
Series	:	PKZM
Accessory Type	:	Wiring Set

Technical Documents

2002010309006706 CCC (Technical Reference)

Availability:

0
in stock
Check now

Rate:

1
+
£ 12.574
