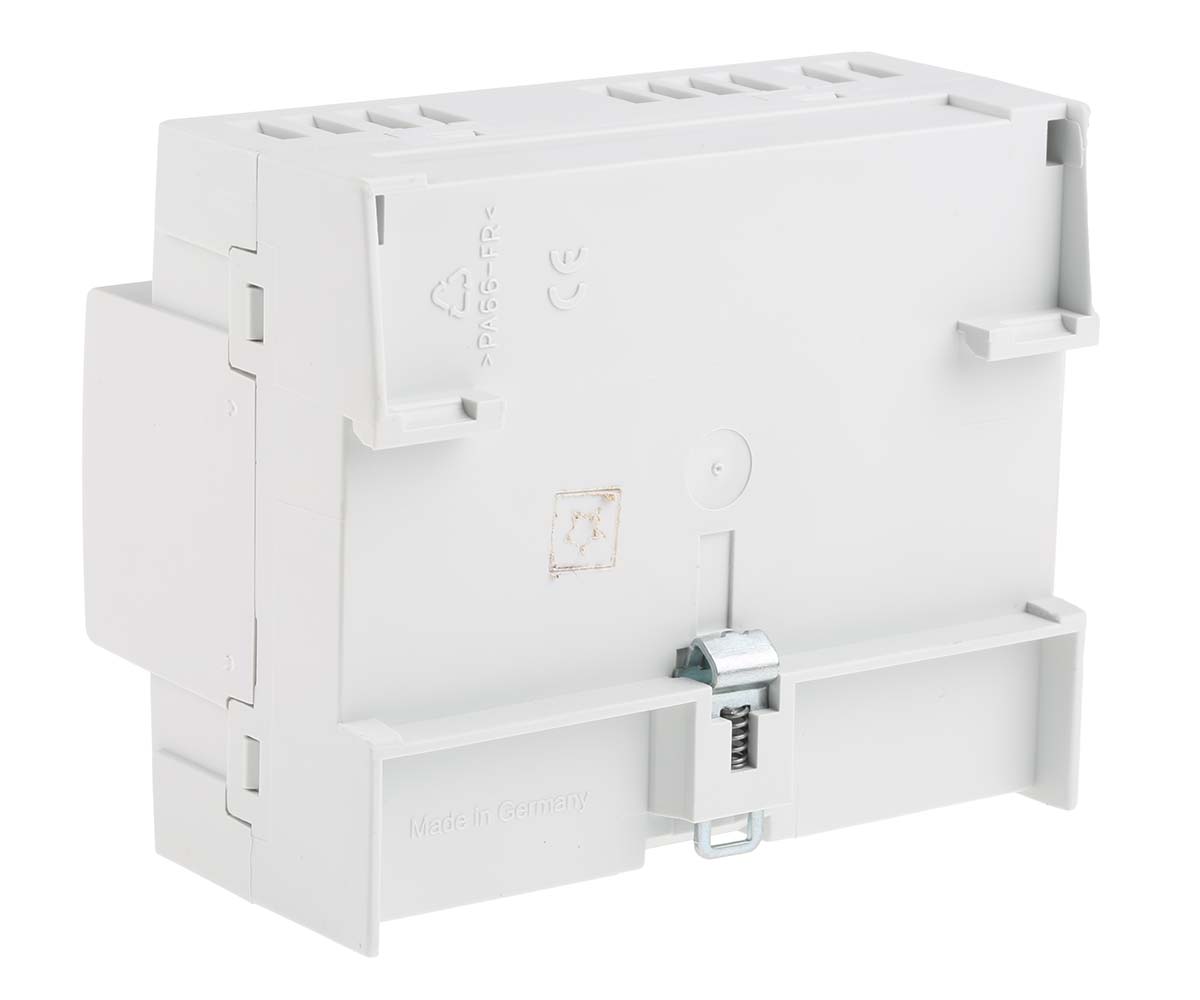

This is Frequency Voltage Monitoring Relay With SPDT Contacts 1 3 Phase Overvoltage Undervoltage manufactured by ABB. The manufacturer part number is 1SVR560730R3402 CM-UFD.M33. Moreover, it has overvoltage, undervoltage voltage sensitivity . The given dimensions of the product include 108 x 67 x 90mm. The product has a voltage sensing range about 57.7 → 240 v ac, 99.9 → 415 v dc . Furthermore, the product is 67mm wide. Additionally, it has about 40 → 70hz frequency sensing range . Its electrical phase configuration includes 1, 3. It senses 80°c maximum temperature . Moreover, it has overfrequency, underfrequency frequency sensitivity . It has a maximum operating temperature of +60°c. The terminal is a screw type. Its typical current range is 6.4ma . Additionally, its time delay is about ±20ms . The product is offered with a minimum 0v ac sensed voltage . The product has -20 → +60°c of operating temperature range. Additionally, it is designed for frequency, voltage monitoring application . It has maximum 415v dc sensed voltage . The contact is equipped with spdt configuration. Its accurate length is 108mm. With 70hz maximum frequency sensed . The product also provides special features, such as monitoring of rocof (rate of change of frequency), multiline backlit lcd display, password setting protection. The product is available in din rail configuration. It has a minimum 40hz frequency sensed . The product cm-ufd, is a highly preferred choice for users. In addition, the height is 90mm. Whereas, the minimum operating temperature of the product is -20°c. It has equipped with 1 poles.
For more information please check the datasheets.
