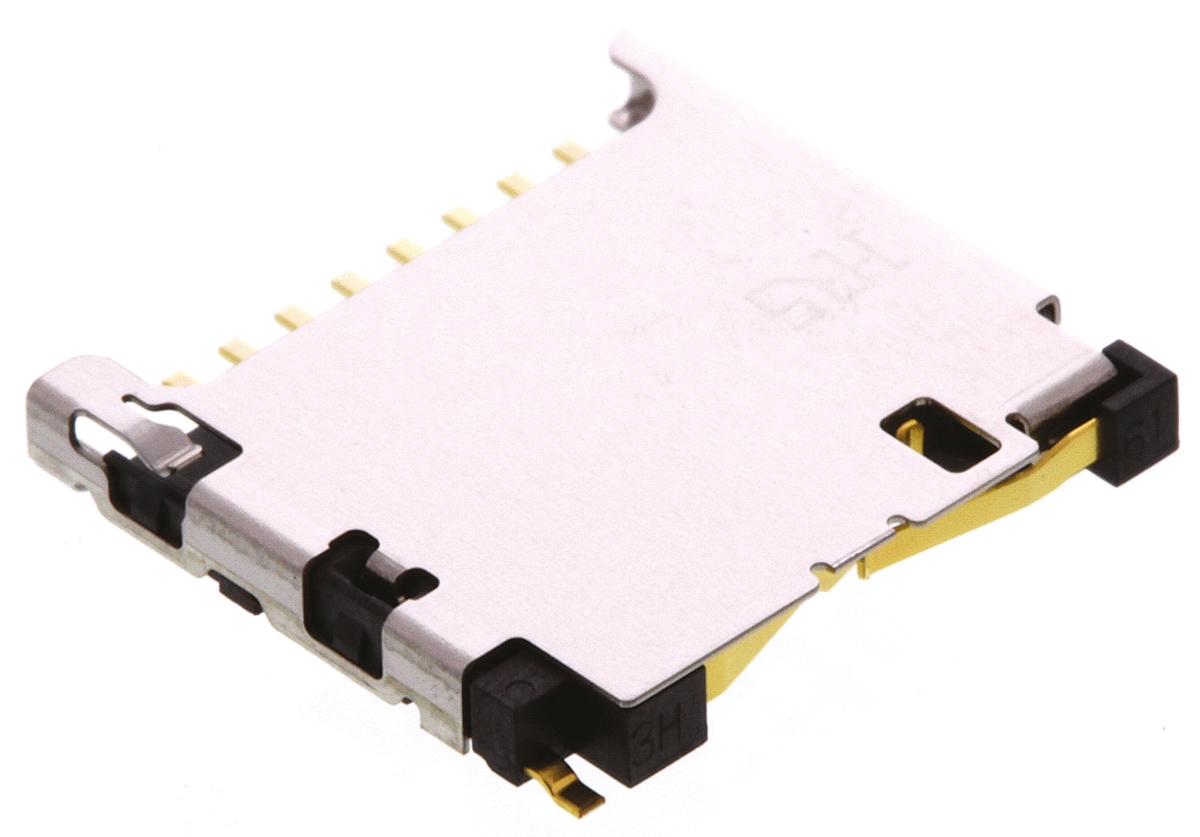

Hirose 8 Way Right Angle Micro SD Memory Card Connector with Solder Termination

Enrgtech Part No: ET14034399
|
Manufacturer Part No:
DM3D-SF
|
Manufacturer: Hirose

DM3D-SF Hirose 8 Way Right Angle Micro SD Memory Card Connector with Solder Termination

Product Information

Dimensions:

11.95 x 11.45 x 1.55mm

Mounting Type:

Surface Mount

Card Type:

MicroSD

Gender:

Female

Body Orientation:

Right Angle

Termination Method:

Solder

Length:

11.45mm

Housing Material:

Liquid Crystal Polymer

Width:

11.95mm

Depth:

1.55mm

Number of Rows:

Contact Plating:

Gold

Checking for live stock

The Hirose DM3D-SF is a right-angle micro SD card connector designed for secure, compact insertion into printed circuit boards. It provides a reliable interface for micro SD memory cards in space-limited electronic assemblies. The low-profile right-angle design facilitates horizontal board layout. This versatile connector delivers reliable performance in industrial, consumer, and embedded applications.

How It Benefits Users

Right-angle orientation supports horizontal board mounting and compact designs.
Solder termination ensures a strong mechanical and electrical connection to the PCB.
Low-profile frame minimises enclosure height for portable devices.
High durability contact mechanism supports repeated insertion cycles.

Designed for Reliable Memory Interface

This versatile connector is engineered to maintain signal integrity and mechanical stability in demanding applications. Its precise housing and contacts guarantee reliable card retention and consistent electrical performance. The right-angle layout supports flexible board designs, while solder-tail terminations simplify manufacturing in surface-mount workflows. The connector is built to handle high-volume insertion cycles and the mechanical stresses of field use.

Application Versatility of the Hirose 8 Way Micro SD Memory Card Connector

Embedded system boards.
Portable consumer devices.
Industrial control units with removable memory for logging or configuration.
IoT gateways and network modules.
Repair and upgrade modules.

microSD Card Connectors Data Sheet(Technical Reference)

8 way angled SD card drawing(Technical Reference)
