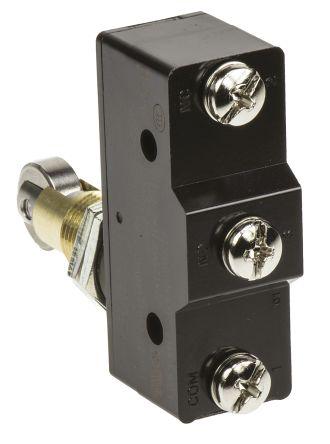

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Omron
Manufacturer Part No : Z15GQ22B
Enrgtech Part No : ET10002492
Product Range : PolySwitch RXEF Series

IP00 Snap Action Limit Switch, Plunger,, NO/NC, 500V

Z15 Series – Basic Switch The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies. High precision basic switch in a wide range of variations Large switching capacity of 15A with high repeat accuracy Contact configuration: SPDT Contact rating: 250Vac 15A, 14Vdc 15A Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity) Approvals UL recognised, CSA Approvals UL recognised, CSA

Product Information

Maximum DC Voltage : 250V
Maximum AC Voltage : 500V
Dimensions : 58.9 x 49.2 x 17.45 mm
Maximum Current : 15 A
IP Rating : IP00
Minimum Operating Temperature : -25°C
Normal State Configuration : NO/NC
Length : 58.9mm
Pole and Throw Configuration : SPDT
Width : 49.2mm
Depth : 17.45mm
Actuator Type : Plunger
Contact Type : Snap Action
Mechanical Life Minimum : 10000000 cycles
Maximum Operating Temperature : +80°C
Terminal Type : Screw

Technical Documents

  • Datasheet (Technical Reference)
  • Z-Series Basic Switches Datasheet (Technical Reference)

Availability:
88
in stock
