Size / Dimension:
0.276" L x 0.276" W (7.00mm x 7.00mm)
Current - Max:
1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White
Detailed Description:

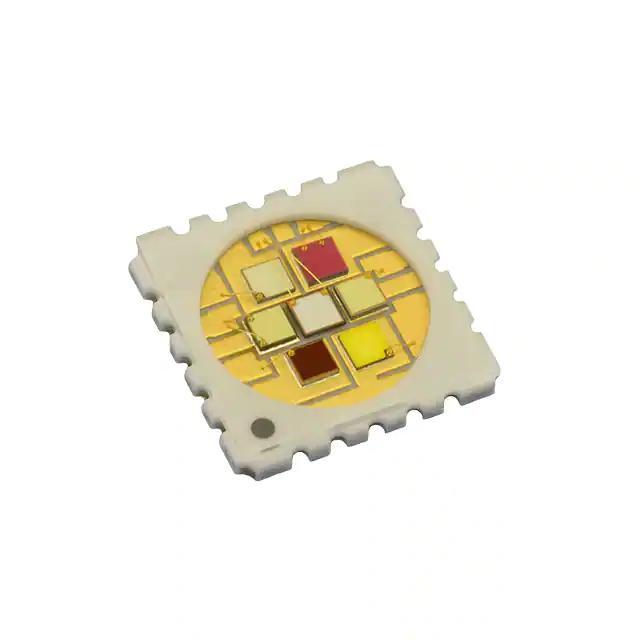

LED Lighting Color LuxiGen™ Amber, Blue, Cyan, Green, Red, Violet, White - Cool 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 2828 (7070 Metric)
Luminous Flux @ Current/Temperature:
70lm Amber, 33lm Blue, 101lm Cyan, 140lm Green, 80lm Red, 900mW Violet, 210lm White
Height - Seated (Max):
0.044" (1.11mm)
Mounting Type:
Surface Mount
Lumens/Watt @ Current - Test:
39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White
Color:
Amber, Blue, Cyan, Green, Red, Violet, White - Cool
Series:
LuxiGen™
Voltage - Forward (Vf) (Typ):
2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White
Temperature - Test:
25°C
Viewing Angle:
120°
Thermal Resistance of Package:
1.4°C/W
Supplier Device Package:
SMD
Packaging:
Cut Tape (CT)
Customer Reference:
Package / Case:
2828 (7070 Metric)
Current - Test:
700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White
Wavelength:
595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White
Manufacturer:
OSRAM Opto Semiconductors Inc.
This is manufactured by OSRAM Opto Semiconductors Inc.. The manufacturer part number is LZ7-04M100. The product's diameters include 0.276" l x 0.276" w (7.00mm x 7.00mm). The given maximum current is 1a amber, 1.5a blue, 1a cyan, 1.5a green, 1.5a red, 1a violet, 1.5a white. It features led lighting color luxigen™ amber, blue, cyan, green, red, violet, white - cool 595nm amber, 457nm blue, 497nm cyan, 525nm green, 624nm red, 395nm violet, 6500k white 2828 (7070 metric). The luminous flux of the product is 70lm amber, 33lm blue, 101lm cyan, 140lm green, 80lm red, 900mw violet, 210lm white. It has the maximum seated height of 0.044" (1.11mm). The product is available in surface mount configuration. 39 lm/w amber, 14 lm/w blue, 42 lm/w cyan, 54 lm/w green, 44 lm/w red, 91 lm/w white of watts at test current. It has a classic amber, blue, cyan, green, red, violet, white - cool colour. The product luxigen™, is a highly preferred choice for users. The typical forward voltage (Vf) of the product is 2.5v amber, 3.3v blue, 3.45v cyan, 3.7v green, 2.5v red, 3.7v violet, 3.3v white. The product's test temperature is 25°c. Furthermore, 120° is the viewing angle of the product. However, the package's thermal resistance is 1.4°c/w. smd is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. Moreover, the product comes in 2828 (7070 metric). The given current test of the product is [Current -Test]. It has a typical wavelength of 595nm amber, 457nm blue, 497nm cyan, 525nm green, 624nm red, 395nm violet, 6500k white. The osram opto semiconductors inc.'s product offers user-desired applications.
