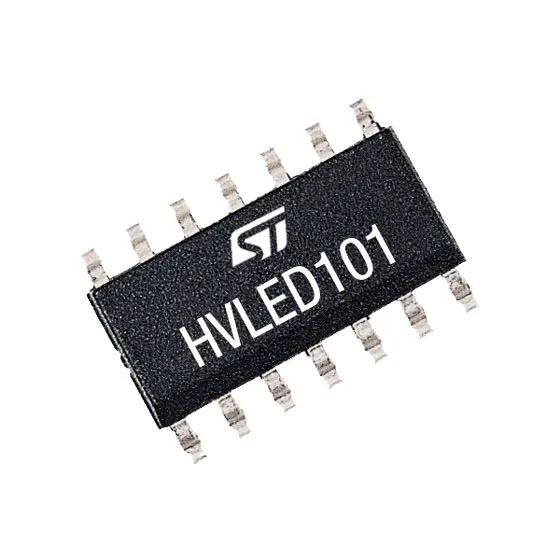

STMicroelectronics HVLED101TR

HVLED101TR STMicroelectronics
STMicroelectronics

Product Information

Number of Outputs:
1
Mounting Type:
Surface Mount
Package Type:
SOP-14
Pin Count:
14
Controller Type:
Flyback Controller
HTSUS:
8542.39.0001
Number of Outputs:
1
Current - Output / Channel:
-
Operating Temperature:
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
Type:
AC DC Offline Switcher
Internal Switch(s):
No
Dimming:
No
Voltage - Supply (Max):
-
Applications:
General Purpose
Voltage - Supply (Min):
-
Manufacturer:
STMicroelectronics
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
20 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
14-SO
Voltage - Output:
-
Packaging:
Tape & Reel (TR)
Frequency:
-
Topology:
Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is HVLED101TR. Additionally, the product is supplied with 1 outputs. The product is available in surface mount configuration. The package is a sort of sop-14. It contains 14 pins. The product has integrated with a flyback controller, a versatile and functional controller. It is assigned with possible HTSUS value of 8542.39.0001. Moreover, the product comes in 14-soic (0.154", 3.90mm width). It comes in ac dc offline switcher configuration. Internal switch options: no. Dimming Info: no. The product is widely employed in general purpose. The stmicroelectronics's product offers user-desired applications. Its typical moisture sensitivity level is 3 (168 hours). It has a long 20 weeks standard lead time. 14-so is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. Topology includes flyback, sepic, step-down (buck), step-up (boost). The product is designated with the ear99 code number.

pdf icon
Datasheet - HVLED101TR(Technical Reference)
pdf icon
HVLED101 03/Aug/2023(PCN Assembly/Origin)
pdf icon
HVLED101(Datasheets)
pdf icon
Modification of Datasheet 02/May/2023(PCN Design/Specification)
