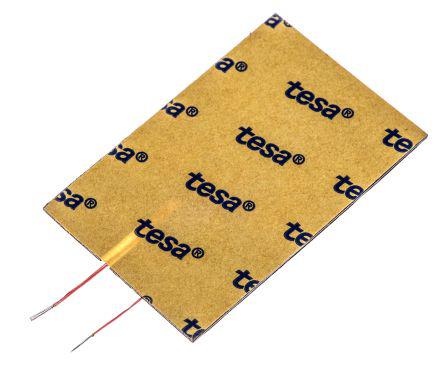

This is Wurth 12 μH ±10% Ferrite Coil Inductor Max SRF:20MHz Q:21 1.55A Idc 550mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308103203. It allows up to 550mω maximum DC resistance. The given dimensions of the product include 48 x 32 x 0.866mm. Furthermore, the lead has 0.17mm diameter. While it carries 1.55a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has minimum 21 quality factors. Its accurate length is 48mm. In addition, the height is 0.866mm. The product comes in 32mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 12 μh inductance value. It provides 20mhz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a through hole type.
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
760308103203 WE-WPCC Wireless Power Charging Coil Data Sheet(Technical Reference)
