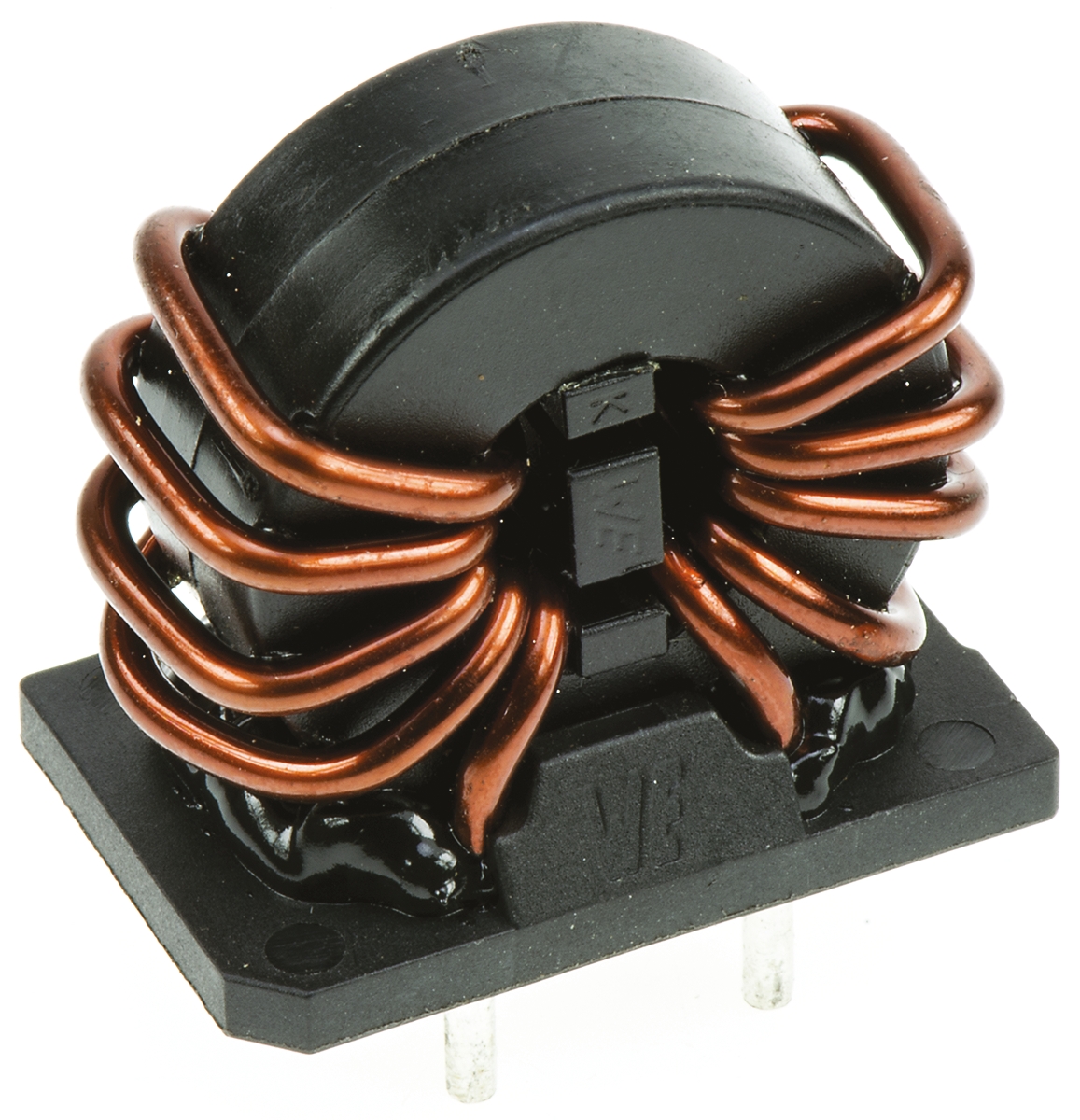

Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 20A Idc

7448042001 Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 20A Idc
7448042001 Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 20A Idc
Wurth Elektronik

Product Information

Termination Style:
Solder
Inductance Tolerance:
-30 to 50 %
Maximum Self Resonant Frequency:
300MHz
Automotive Standard:
No
Test Frequency:
50 Hz
Core Material:
Nano Crystal
Inductance:
2 x 1 mH
Product Type:
Common Mode Choke
Maximum Operating Temperature:
125°C
Lead Diameter:
1.6mm
Maximum DC Resistance:
2.4mΩ
Maximum DC Current:
20A
Length:
30mm
Standards/Approvals:
ENEC 10, RoHS, REACH, VDE
Lead Pitch:
10mm
Mount Type:
Through Hole
Diameter:
30 mm
Series:
WE-CMBNC
Depth:
19mm
Height:
32mm
Packaging:
Tray & Carton
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke Max SRF:1 kHz → 300 MHz 20A Idc manufactured by Wurth Elektronik. The manufacturer part number is 7448042001. Moreover, it has solder terminal style. It has a standard -30 to 50 % inductance tolerance . It provides 300mhz of maximum self-resonant frequency. The product complies with automotive standard - no. It features a test frequency of 50 hz. The core is manufactured from highly durable and reliable nano crystal materials. The product has a 2 x 1 mh inductance value. common mode choke is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Furthermore, the lead has 1.6mm diameter. It allows up to 2.4mω maximum DC resistance. While it carries 20a of maximum DC current. Its accurate length is 30mm. The lead features 10mm pitch. It has a through hole type mount . Its diameter is 30 mm. The product we-cmbnc, is a highly preferred choice for users. The product comes in 19mm depth. In addition, the height is 32mm. In addition, tray & carton is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Common Mode Choke WE-CMBNC - 7448042001 Datasheet(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
