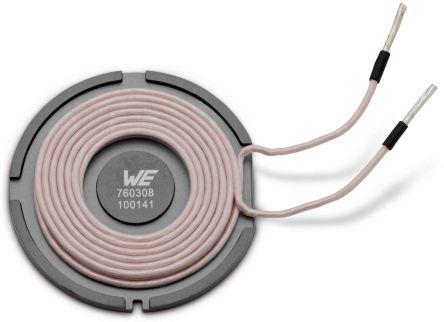

Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:180, 9A Idc, 30mΩ Rdc WE-WPCC

Enrgtech Part No: ET13844300
|
Manufacturer Part No:
760308100141
|
Manufacturer: Wurth Elektronik

760308100141 Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:180, 9A Idc, 30mΩ Rdc WE-WPCC

Product Information

Diameter:

50mm

Dimensions:

50 x 48 x 6mm

Mounting Type:

Axial

Maximum DC Resistance:

30mΩ

Maximum DC Current:

Series:

WE-WPCC

Minimum Quality Factor:

180

Height:

48.3mm

Depth:

6mm

Core Material:

Ferrite

Inductance:

10 μH

Maximum Self Resonant Frequency:

11MHz

Checking for live stock

This is Wurth 10 μH ±10% Ferrite Wireless Charging Coil Max SRF:11MHz Q:180 9A Idc 30mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308100141. Its diameter is 50mm. The given dimensions of the product include 50 x 48 x 6mm. The product is available in axial configuration. It allows up to 30mω maximum DC resistance. While it carries 9a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 180 quality factors. In addition, the height is 48.3mm. The product comes in 6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 μh inductance value. It provides 11mhz of maximum self-resonant frequency. The lead features 18mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

Datasheet(Technical Reference)

Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 760308100141 on website for other similar products.

We accept all major payment methods for all products including ET13844300. Please check your shopping cart at the time of order.

You can order Wurth Elektronik brand products with 760308100141 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Leaded Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:180, 9A Idc, 30mΩ Rdc WE-WPCC. You can also check on our website or by contacting our customer support team for further order details on Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:180, 9A Idc, 30mΩ Rdc WE-WPCC.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13844300 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13844300.

Yes. We ship 760308100141 Internationally to many countries around the world.
