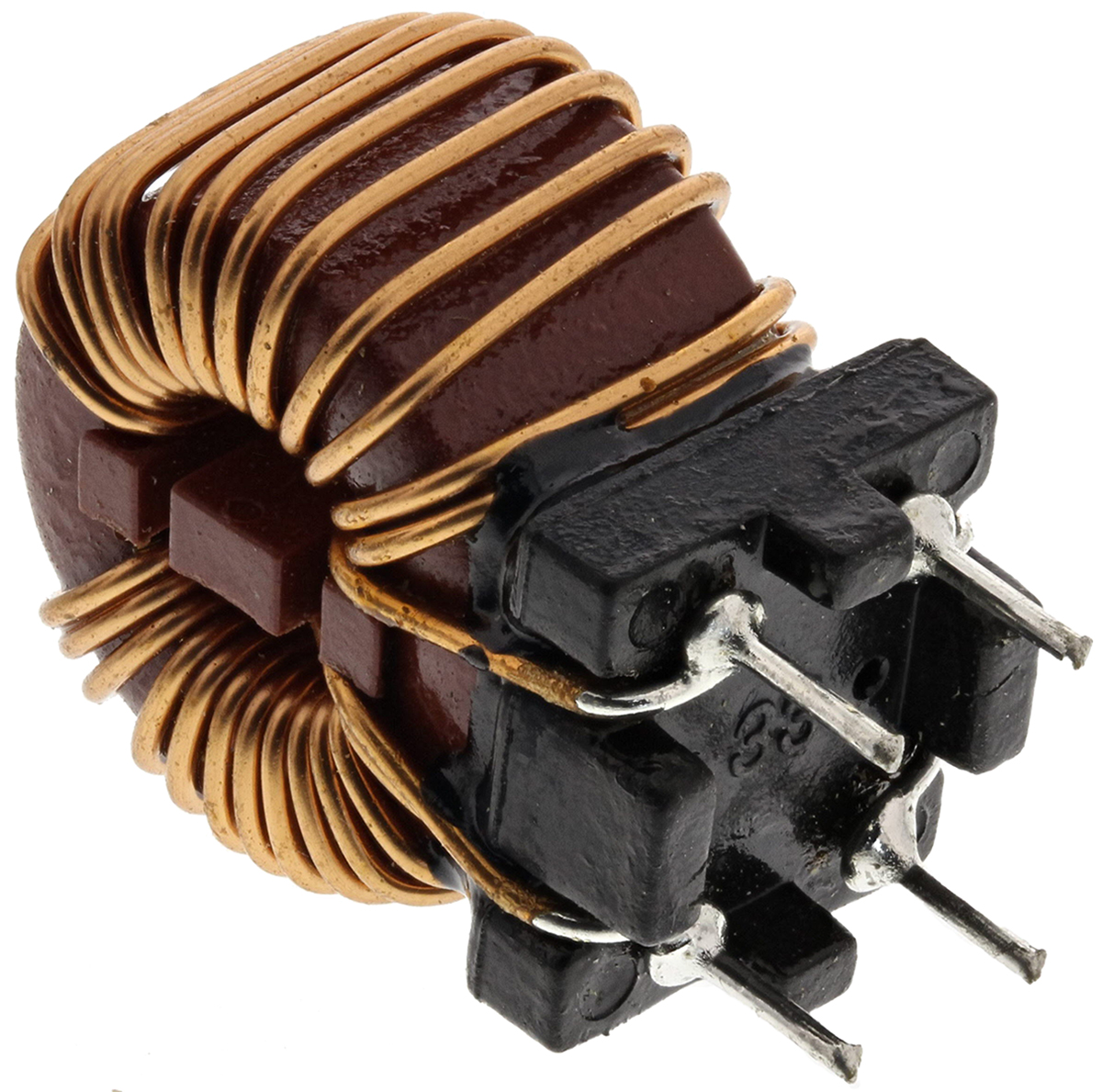

Wurth 1 mH ±30% Leaded Inductor, 3A Idc, 35mΩ Rdc WE-CMB

744822301 Wurth 1 mH ±30% Leaded Inductor, 3A Idc, 35mΩ Rdc WE-CMB
744822301
744822301 Wurth 1 mH ±30% Leaded Inductor, 3A Idc, 35mΩ Rdc WE-CMB
Wurth Elektronik

Product Information

Maximum Voltage:
250V ac
Termination Style:
Solder
Inductance Tolerance:
±30 %
Automotive Standard:
No
Core Material:
Manganese Zinc
Inductance:
1 mH
Product Type:
Common Mode Choke
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-40°C
Lead Diameter:
0.7mm
Maximum DC Resistance:
35mΩ
Maximum DC Current:
3A
Length:
17.5mm
Standards/Approvals:
ENEC 10, REACH, VDE, RoHS
Lead Pitch:
7.7mm
Mount Type:
Radial
Diameter:
17.5 mm
Series:
WE-CMB
Depth:
13mm
Height:
22mm
Test Frequency:
50 Hz
RoHs Compliant
Checking for live stock

This is Wurth 1 mH ±30% Leaded Inductor 3A Idc 35mΩ Rdc WE-CMB manufactured by Wurth Elektronik. The manufacturer part number is 744822301. It has a maximum 250v ac voltage . Moreover, it has solder terminal style. It has a standard ±30 % inductance tolerance . The product complies with automotive standard - no. The core is manufactured from highly durable and reliable manganese zinc materials. The product has a 1 mh inductance value. common mode choke is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -40°c. Furthermore, the lead has 0.7mm diameter. It allows up to 35mω maximum DC resistance. While it carries 3a of maximum DC current. Its accurate length is 17.5mm. The lead features 7.7mm pitch. It has a radial type mount . Its diameter is 17.5 mm. The product we-cmb, is a highly preferred choice for users. The product comes in 13mm depth. In addition, the height is 22mm. It features a test frequency of 50 hz.
