Current Rating:
20.2 A
Supply Voltage:
230 V ac
For Use With:
Asynchronous Motors, Synchronous Motors
Function:
Motor Control
Better World Claim:
Saves energy
Standards Met:
ATEX, CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, TUV, UL 508C
Drive Type:
Variable Frequency
Overall Length:
171mm
Phase:
3
Overall Depth:
409mm
IP Rating:
IP21
STO:
Yes
Output Frequency:
0.1 → 500Hz
Special Features:
Embedded Power Measurement & Energy Dashboard, Energy Saving, Fluids Management Processing, Services Oriented Drive
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Wall Mount
Series:
ATV630
Overall Width:
233mm
Filter Included:
Yes
Control Panel:
Yes
Power Rating:
5.5 kW
Field Bus Communication Type:
Profibus

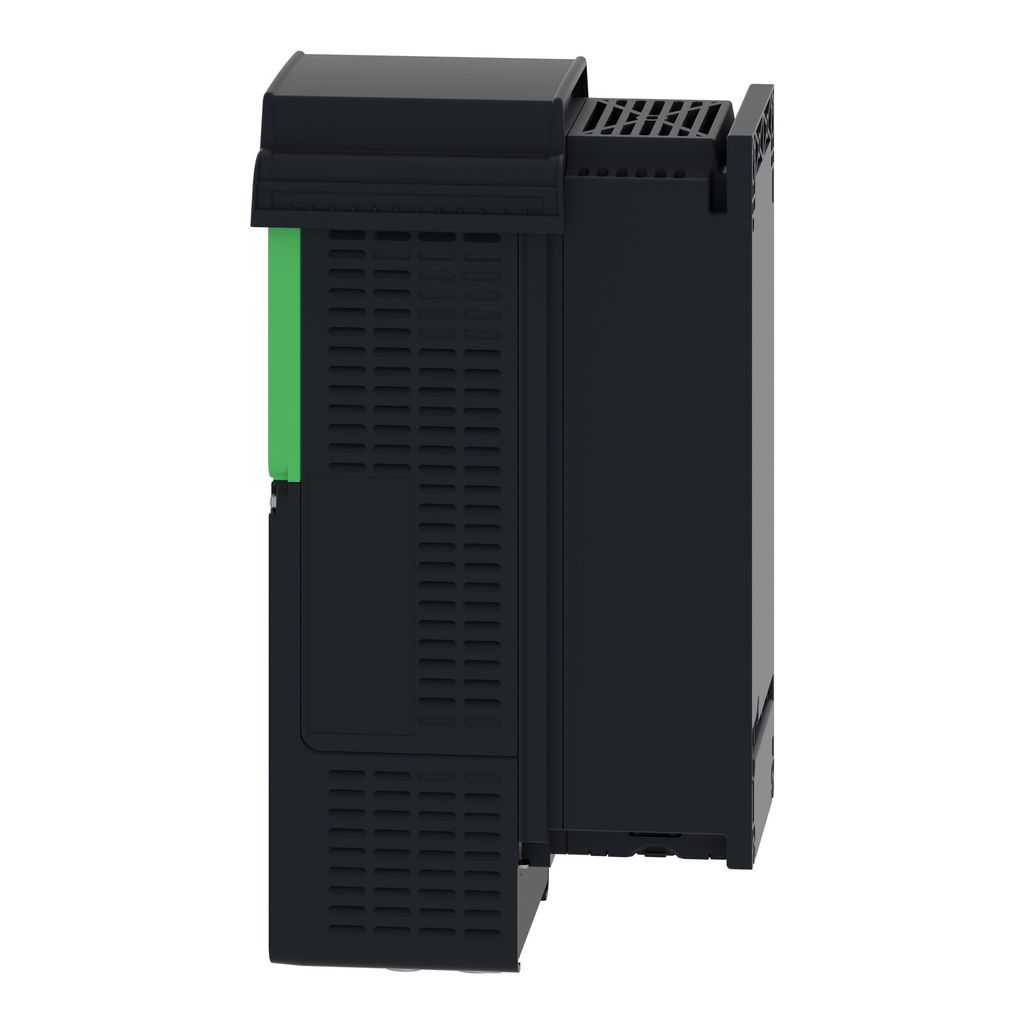

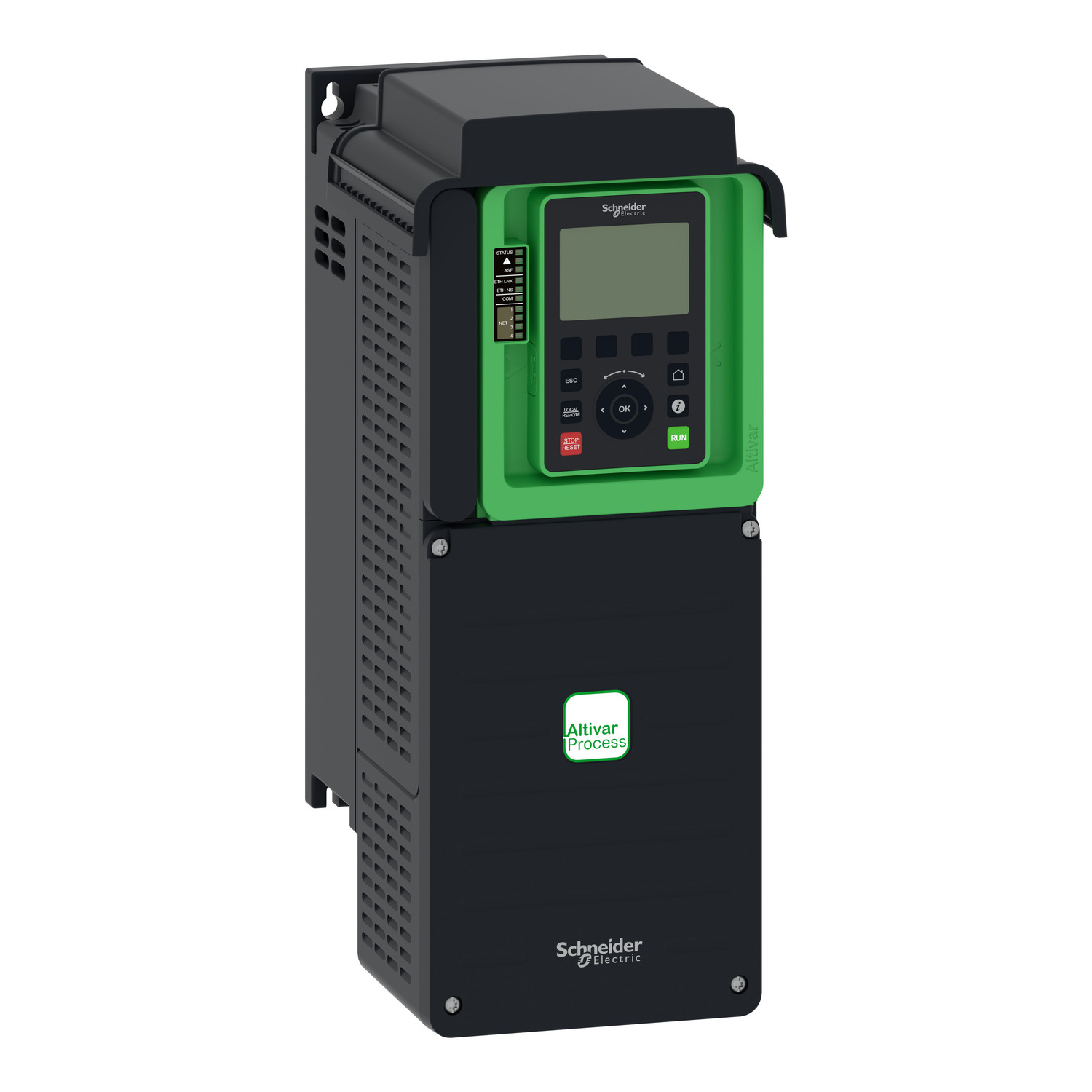

This is Variable Speed Drive ATV63 5.5 kW with EMC Filter 0.1 → 500Hz Out manufactured by Schneider Electric. The manufacturer part number is ATV630U55M3. The product has a current rating of 20.2 a. Features 230 v ac supply voltage. The product is highly suitable for asynchronous motors, synchronous motors. It performs basic function of motor control. The product complies with all safety standards, such as atex, ce, csa, cul, eac, en 954-1, en iso 13849-1, en iso 13849-2, iec 60204-1, iec 6100, iec 61158, iec 61508, iec 61784, iec/en 60721, tuv, ul 508c. The product features a variable frequency drive. It has an overall length of 171mm. Concerning phase options, it features 3 configuration. Similarly, the product has 409mm of overall depth. It is IP rated with ip21. In has an STO yes . This product has an output frequency range of 0.1 → 500hz. The product also provides special features, such as embedded power measurement & energy dashboard, energy saving, fluids management processing, services oriented drive. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in wall mount configuration. The product atv630, is a highly preferred choice for users. It has an overall width of 233mm. It includes a filter yes . It includes a control panel yes . Feature 5.5 kw of power rating. It has a/an profibus type bus communication .
